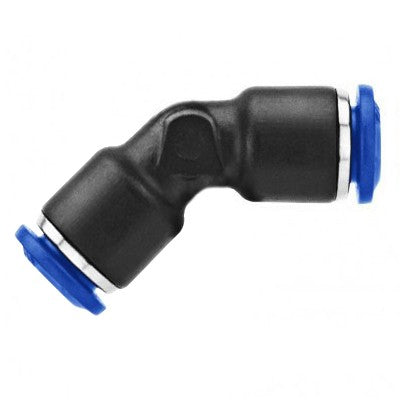

85180-53 AIGNEP | 85 Series | 45° Union Elbow | 5/32" Tube | Pack of 10
85180-53 by AIGNEP | 85 Series | Union | 5/32" Tube | 45° Elbow | Pack of 10
85180-53 AIGNEP | 85 Series | 45° Union Elbow | 5/32" Tube | Pack of 10

85180-53 by AIGNEP | 85 Series | Union | 5/32" Tube | 45° Elbow | Pack of 10

Save $10.66 Save $10.66
$26.65
$26.65 - $26.65
$26.65
$15.99
$15.99 - $15.99
$15.99

Package Quantity: 10 ea

Specifications for Variant SKU: 85180-53 AIGNEP | 10 |
Series: 85 Series
Shape (Orientation): 45 Degree
Ends Configuration: 5/32in Push-to-Connect, 5/32in Push-to-Connect, Some Ends Match
Material(s): Nylon

45° Union Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nylon

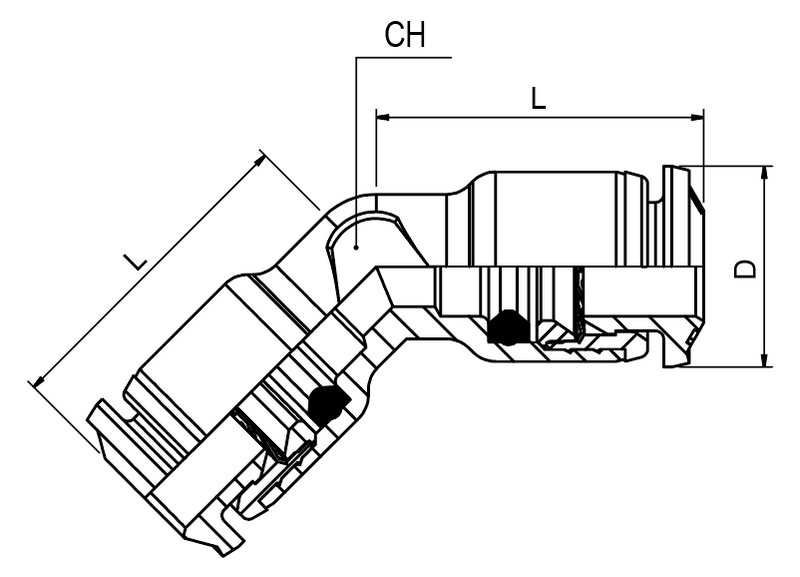

Product Number Tube L CH D
85180-53 5/32" 16.5 mm 7 mm 10 mm
85180-04 1/4" 20.5 mm 9 mm 12 mm
85180-05 5/16" 22 mm 10 mm 14 mm
85180-06 3/8" 26.5 mm 13 mm 17 mm
85180-08 1/2" 30 mm 16 mm 20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
