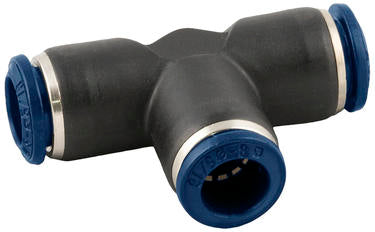

85230-53 by AIGNEP | 85 Series | Union Composite | 5/32" Tube | Tee | Pack of 10

Save $11.63

$29.08

$29.08 - $29.08

$29.08

$17.45

$17.45 - $17.45

$17.45

AIGNEP USA
85 Series - Union Tee Composite

Package Quantity: 10 ea

Specifications for Variant SKU: 85230-53 AIGNEP \| 10 \|
Series:	85 Series
Shape (Orientation):	Tee
Ends Configuration:	5/32in Push-to-Connect, 5/32in Push-to-Connect, 5/32in Push-to-Connect, Some Ends Match
Material(s):	Nylon

Specifications:
Pressure Rating: Vacuum-250 PSI Temperature Range: 0-176° F Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper Media: Compressed Air, Water Body: Nylon


Product Number	Tube	L1	L2	CH	D	D1	D2
85230-02	1/8"	31 mm	15,5 mm	9 mm	10 mm	3 mm	3 mm
85230-53	5/32"	33 mm	16,5 mm	9 mm	10 mm	4 mm	4 mm
85230-04	1/4"	41 mm	20,5 mm	11 mm	12,5 mm	6 mm	6 mm
85230-05-04-05	5/16" x 1/4" (Branch) x 5/16"	45 mm	22,5 mm	13 mm	14 mm	6 mm	8 mm
85230-05	5/16"	44 mm	22 mm	13 mm	14 mm	8 mm	8 mm
85230-06	3/8"	53 mm	26,5 mm	16 mm	17 mm	10 mm	10 mm
85230-06-08-06	3/8" x 1/2" (Branch) x 3/8"	59.5 mm	30,5 mm	19 mm	20 mm	12 mm	10 mm
85230-08-06-08	1/2" x 3/8" (Branch) x 1/2"	61.5 mm	30 mm	19 mm	20 mm	10 mm	12 mm
85230-08	1/2"	61.5 mm	30 mm	19 mm	20 mm	12 mm	12 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
