85240-06 AIGNEP | 85 Series | Plug In Tee | 3/8" Tube x 3/8" Stud | Pack of 10

85240-06 by AIGNEP | 85 Series | Plug In | 3/8" Tube x 3/8" Stud | Tee | Pack of 10

Save $19.55

$48.88

$48.88 - $48.88

$48.88

$29.33

$29.33 - $29.33

$29.33

Package Quantity: 10 ea

Specifications for Variant SKU: 85240-06 AIGNEP \| 10 \|
Series:	85 Series
Shape (Orientation):	Tee
Ends Configuration:	3/8in Push-to-Connect, 3/8in Push-to-Connect, 3/8in Push-to-Connect, Some Ends Match
Material(s):	Nylon

Tee Plug In Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nylon

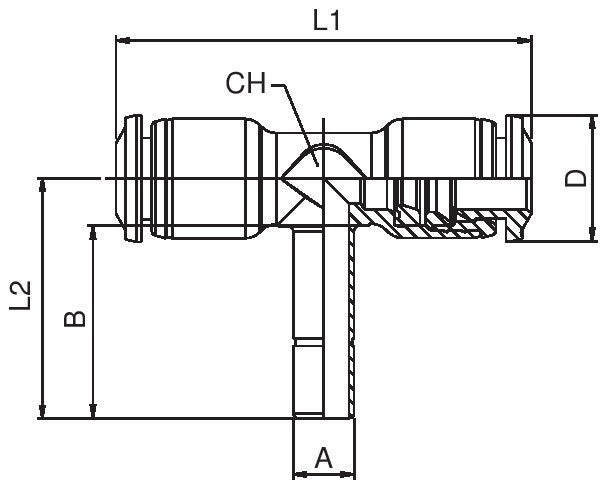

Product Number	Tube	A	B	L1	L2	CH	D
85240-53	5/32"	5/32"	17 mm	33 mm	20.7 mm	7 mm	10 mm
85240-04	1/4"	1/4"	19 mm	41 mm	23.7 mm	9 mm	12.5 mm
85240-05	5/16"	5/16"	20 mm	44 mm	26 mm	10 mm	14 mm
85240-06	3/8"	3/8"	22.5 mm	53 mm	30 mm	13 mm	17 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
