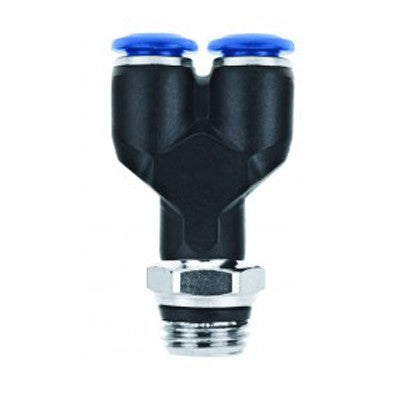

85340-53-02 AIGNEP | 85 Series | 4 Position Y Swivel | 5/32" Tube x 1/8" Swift-Fit Male | Pack of 10
85340-53-02 by AIGNEP | 85 Series | 4 Position Swivel | 5/32" Tube x 1/8" Swift-Fit Male | Y | Pack of 10
85340-53-02 AIGNEP | 85 Series | 4 Position Y Swivel | 5/32" Tube x 1/8" Swift-Fit Male | Pack of 10

85340-53-02 by AIGNEP | 85 Series | 4 Position Swivel | 5/32" Tube x 1/8" Swift-Fit Male | Y | Pack of 10

Save $27.28 Save $27.28
$68.20
$68.20 - $68.20
$68.20
$40.92
$40.92 - $40.92
$40.92

Package Quantity: 10 ea

Specifications for Variant SKU: 85340-53-02 AIGNEP | 10 |
Series: 85 Series
Shape (Orientation): Y
Ends Configuration: 5/32in Push-to-Connect, 1/8in Male Swift-Fit, 5/32in Push-to-Connect, Some Ends Match
Material(s): Nylon
Seal Material(s): Buna-N/Nitrile Rubber

4 Position Y SWIFTFIT Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number Tube A B C L F CH H
85340-53-02 5/32" 1/8" 5.5 mm 5.5 mm 39.5 mm 3.3 mm 11 mm 21.5 mm
85340-53-04 5/32" 1/4" 7 mm 10.8 mm 42 mm 3.3 mm 14 mm 21.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
