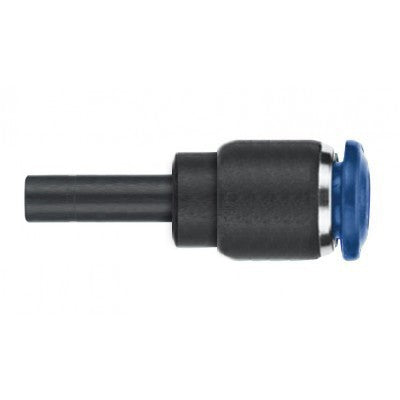

85705-53-04 AIGNEP | 85 Series | Expander | 5/32" Male Stud x 1/4" Tube | Pack of 10
85705-53-04 by AIGNEP | 85 Series | Expander | 5/32" Male Stud x 1/4" Tube | Pack of 10
85705-53-04 AIGNEP | 85 Series | Expander | 5/32" Male Stud x 1/4" Tube | Pack of 10

85705-53-04 by AIGNEP | 85 Series | Expander | 5/32" Male Stud x 1/4" Tube | Pack of 10

Save $6.85 Save $6.85
$17.12
$17.12 - $17.12
$17.12
$10.27
$10.27 - $10.27
$10.27

Package Quantity: 10 ea

Specifications for Variant SKU: 85705-53-04 AIGNEP | 10 |
Series: 85 Series
Shape (Orientation): Straight
Ends Configuration: 5/32in Push-to-Connect, 1/4in Push-to-Connect
Material(s): Nylon

Tube Expander Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nylon

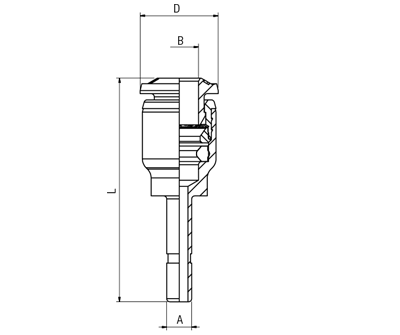

Product Number A B L D
85705-53-04 5/32" 1/4" 36 mm 12 mm
85705-04-05 1/4" 5/16" 38.5 mm 14 mm
85705-04-06 1/4" 3/8" 42 mm 17 mm
85705-05-06 5/16" 3/8" 43 mm 17 mm
85705-06-08 3/8" 1/2" 48 mm 20 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
