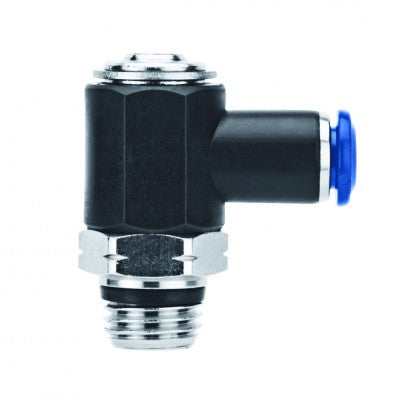

85973-53-02 AIGNEP | Functional (Flow Controls) Series | Needle Valve | 5/32" Tube x 1/8" Swift-Fit Male | Screw Adjustment
85973-53-02 by AIGNEP | Functional (Flow Controls) Series | Needle Valve | 5/32" Tube x 1/8" Swift-Fit Male | Screw Adjustment
85973-53-02 AIGNEP | Functional (Flow Controls) Series | Needle Valve | 5/32" Tube x 1/8" Swift-Fit Male | Screw Adjustment

85973-53-02 by AIGNEP | Functional (Flow Controls) Series | Needle Valve | 5/32" Tube x 1/8" Swift-Fit Male | Screw Adjustment

Save $4.94 Save $4.94
$12.35
$12.35 - $12.35
$12.35
$7.41
$7.41 - $7.41
$7.41
Specifications for Variant SKU: 85973-53-02 AIGNEP
Series: Functional (Flow Controls) Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/32in Push-to-Connect, 1/8in Male Swift-Fit
Material(s): Nylon
Seal Material(s): Buna-N/Nitrile Rubber

Inch Tube Needle Valve

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number Tube A B (IN) B L1 L2 CH Code
85973-53-32 5/32" 10-32 0.157" 4 mm 19 mm 24 mm 8 mm B
85973-53-02 5/32" 1/8" 0.217" 5.5 mm 21 mm 30.5 mm 14 mm B
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
