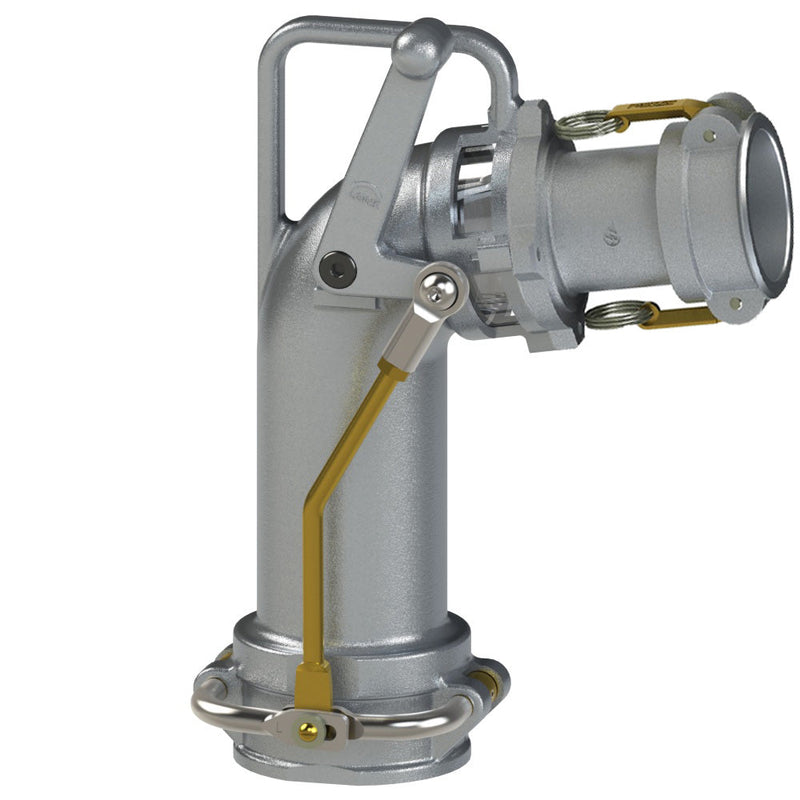

86004140S (UTF40 SHORT) by PT-Coupling | Petroleum Handling Dual Point Tight Fill Elbow | with TF40CF Coupler | Complete Assembly

86004140S (UTF40 SHORT) by PT-Coupling | Petroleum Handling Dual Point Tight Fill Elbow | with TF40CF Coupler | Complete Assembly

Save $559.60 Save $559.60
$1,507.53
$1,507.53 - $1,507.53
$1,507.53
$947.93
$947.93 - $947.93
$947.93

PT Coupling
Petroleum Handling Dual Point Tight Fill Elbow | Complete Assembly

Made in the USA.
Specifications for Variant SKU: 86004140S PT-Coupling
Shape (Orientation): Straight
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Handle does not require a locking feature (cams over center).
  • Adjustable linkage, (linkage can be adjusted in the field, for older worn adapters).
  • Brass Cams are solid (no rollers).
  • All PT elbows have interchangeable Cam Arm Assembly Kits
  • Optional parts may be substituted or added.
  • Order Cap Screw Kit to attach connector end.
  • Anti-Spill Tube Assembly only available for UTF40 Short
  • Half the moving/replacement parts, lightest weight in the industry.
    • UTF40 13.5 lbs
    • UTF40 Short 11.5 lbs
  • Made in the USA
Part
Name		 Item # Description
UTF40 86004100 UTF40 w/TF40AF Adapter
UTF40 86004200 UTF40 Short Tightfill
UTF40SHORT 86004130S UTF40 SHORT w/TF30X40AF Adapter
UTF40 SHORT 86004140S UTF40 SHORT w/TF40CF Coupler
UTF40 86004130A UTF40 w/TF30X40AF Adapter
UTF40 86004140C UTF40 w/TF40CF Coupler
UTF40 86004130C UTF40 w/TF30X40CF Coupler
UTF40 86004140T UTF40 w/TF40X40TF Flange
UTF40 86004130T UTF40 w/TF30X40TF Flange
Optional Parts
Part
Name		 Item # Description
TF30X40AF 86133040 3" Adapter x 4" Flange
TF30X40CF 86383040 3" Coupler x 4" Flange
TF40CF 86384000 4" Coupler x 4" Flange
TF40TF 86394000 4" Female NPT Thread x 4" Flange
Repair Parts List
Ref # Item # Description
3 86004120 UTF40 Cam Assembly Kit
7 86004002 1/2" Thick Fuel Gasket
8 86004108 Actuation Lever Bolt
10 86004121 UTF Connecting Link Pin Kit
11 86004123 UTF/UVR Sight Glas Kit
12 86004122 UTF/UVR Cap Screw Kit
13 86004014 TF40AF Adapter
