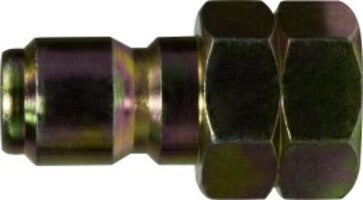

86045 (86-045) Midland Quick Disconnect Female Plug - 1/4" Female NPT - 1/4" Body Size - 4000 PSI - Steel

86045 by Midland | Quick Disconnect Plug | 1/4" Female NPT | 1/4" Body Size | 4000 PSI | Steel

Save $0.29 Save $0.29
$2.61
$2.61 - $2.61
$2.61
$2.32
$2.32 - $2.32
$2.32

Midland Industries
Quick Disconnect Couplings - Straight Through Style

Fully interchangeable with Parker, Hansen, Foster and Adams.

Use with liquids, hydraulic service, compressed air, gases, water and vacuum

Ideal for applications such as high pressure water, steam washers, and carpet cleaners

Inventory @ Manufacturers Warehouse: 1193 Units
Specifications for Variant SKU: 86045 Midland
Shape (Orientation): Straight
Material(s): Steel
Features:
  • Brass couplers have brass bodies and brass valves, 8 steel locking balls, Buna-N seal, and stainless steel springs.
  • Stainless steel couplers have stainless steel bodies, 8 stainless steel locking balls, Buna-N seal, and stainless steel springs.
  • Plugs are steel with green blue zinc plating or stainless steel.
  • Straight through design means there is no positive shut-off after disconnect.
  • Max. Temp. 212°F for Couplers / 300°F for Plugs.
  • Max Flow: 10.5 GPM
Male Brass Couplers

 Male Steel Plugs
Part Number Body Size Thread Size PSI Part Number Body Size Thread Size PSI
86030
(86-030)		 1/4" 1/4" 4000 PSI 86040
(86-040)		 1/4" 1/4" 4000 PSI
86031
(86-031)		 3/8" 3/8" 4000 PSI 86041
(86-041)		 3/8" 3/8" 4000 PSI
86032
(86-032)		 1/2" 1/2" 4000 PSI 86042
(86-042)		 1/2" 1/2" 4000 PSI
Female Brass Couplers

 Female Steel Plugs
Part Number Body Size Thread Size PSI Part Number Body Size Thread Size PSI
86035
(86-035)		 1/4" 1/4" 4000 PSI 86045
(86-045)		 1/4" 1/4" 4000 PSI
86036
(86-036)		 3/8" 3/8" 4000 PSI 86046
(86-046)		 3/8" 3/8" 4000 PSI
86037
(86-037)		 1/2" 1/2" 4000 PSI 86047
(86-047)		 1/2" 1/2" 4000 PSI
Male Stainless Steel Couplers

 Male Stainless Steel Plugs
Part Number Body Size Thread Size PSI Part Number Body Size Thread Size PSI
86030SS
(86-030SS)		 1/4" 1/4" 6000 PSI 86040SS
(86-040SS)		 1/4" 1/4" 6000 PSI
86031SS
(86-031SS)		 3/8" 3/8" 6000 PSI 86041SS
(86-041SS)		 3/8" 3/8" 6000 PSI
Female Stainless Steel Couplers

 Female Stainless Steel Plugs
Part Number Body Size Thread Size PSI Part Number Body Size Thread Size PSI
86035SS
(86-035SS)		 1/4" 1/4" 6000 PSI 86045SS
(86-045SS)		 1/4" 1/4" 6000 PSI
86036SS
(86-036SS)		 3/8" 3/8" 6000 PSI 86046SS
(86-046SS)		 3/8" 3/8" 6000 PSI
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
