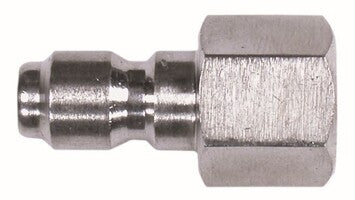

86045SS by Midland | Quick Disconnect Plug | 1/4" Female NPT | 1/4" Body Size | 6000 PSI | Stainless Steel

Save $0.04 Save $0.04
Original price $3.79
Original price $3.79 - Original price $3.79
Original price $3.79
Current price $3.75
$3.75 - $3.75
Current price $3.75

Midland Industries
Quick Disconnect Couplings - Straight Through Style

Fully interchangeable with Parker, Hansen, Foster and Adams.

Use with liquids, hydraulic service, compressed air, gases, water and vacuum

Ideal for applications such as high pressure water, steam washers, and carpet cleaners

This product will take 2-3 Weeks minimum to ship.

Inventory @ Manufacturers Warehouse: 510 Units

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 86045SS Midland
Shape (Orientation): Straight
Material(s): Stainless Steel
Features:
  • Brass couplers have brass bodies and brass valves, 8 steel locking balls, Buna-N seal, and stainless steel springs.
  • Stainless steel couplers have stainless steel bodies, 8 stainless steel locking balls, Buna-N seal, and stainless steel springs.
  • Plugs are steel with green blue zinc plating or stainless steel.
  • Straight through design means there is no positive shut-off after disconnect.
  • Max. Temp. 212°F for Couplers / 300°F for Plugs.
  • Max Flow: 10.5 GPM
Male Brass Couplers

Male Steel Plugs

Part Number Body Size Thread Size PSI Part Number Body Size Thread Size PSI
86030
(86-030)
1/4" 1/4" 4000 PSI 86040
(86-040)
1/4" 1/4" 4000 PSI
86031
(86-031)
3/8" 3/8" 4000 PSI 86041
(86-041)
3/8" 3/8" 4000 PSI
86032
(86-032)
1/2" 1/2" 4000 PSI 86042
(86-042)
1/2" 1/2" 4000 PSI
Female Brass Couplers

Female Steel Plugs

Part Number Body Size Thread Size PSI Part Number Body Size Thread Size PSI
86035
(86-035)
1/4" 1/4" 4000 PSI 86045
(86-045)
1/4" 1/4" 4000 PSI
86036
(86-036)
3/8" 3/8" 4000 PSI 86046
(86-046)
3/8" 3/8" 4000 PSI
86037
(86-037)
1/2" 1/2" 4000 PSI 86047
(86-047)
1/2" 1/2" 4000 PSI
Male Stainless Steel Couplers

Male Stainless Steel Plugs

Part Number Body Size Thread Size PSI Part Number Body Size Thread Size PSI
86030SS
(86-030SS)
1/4" 1/4" 6000 PSI 86040SS
(86-040SS)
1/4" 1/4" 6000 PSI
86031SS
(86-031SS)
3/8" 3/8" 6000 PSI 86041SS
(86-041SS)
3/8" 3/8" 6000 PSI
Female Stainless Steel Couplers

Female Stainless Steel Plugs

Part Number Body Size Thread Size PSI Part Number Body Size Thread Size PSI
86035SS
(86-035SS)
1/4" 1/4" 6000 PSI 86045SS
(86-045SS)
1/4" 1/4" 6000 PSI
86036SS
(86-036SS)
3/8" 3/8" 6000 PSI 86046SS
(86-046SS)
3/8" 3/8" 6000 PSI
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
