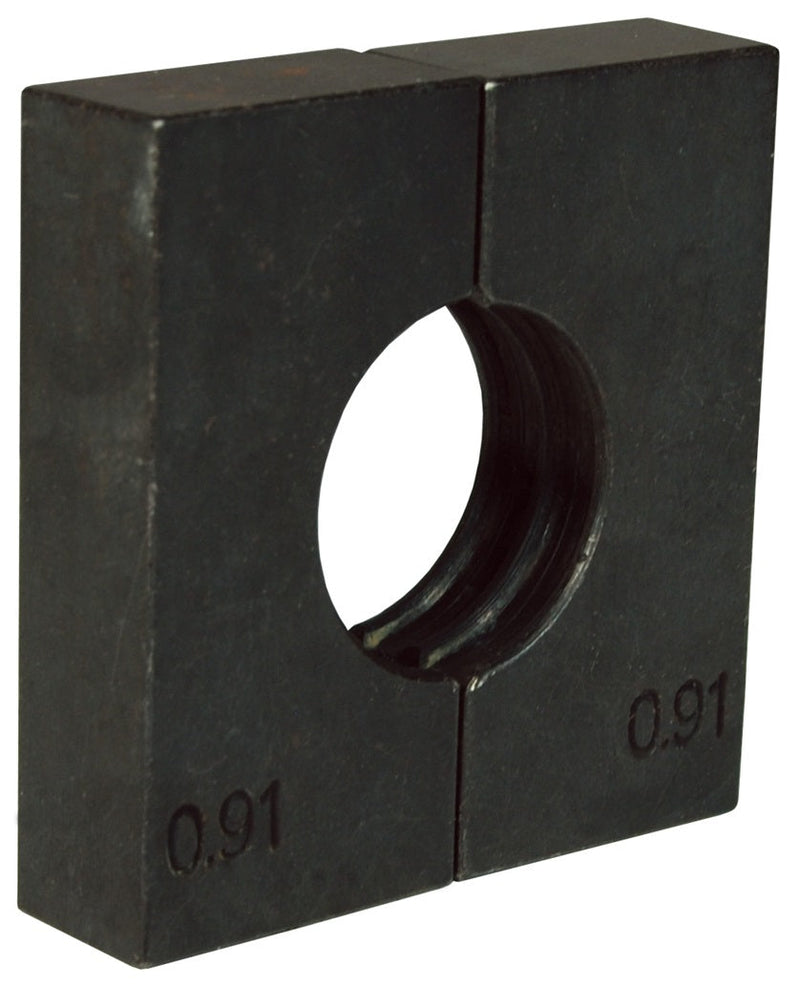

861-26 by Dixon Valve | Large Hose Crimper Die | for 860 Series Crimper | 13/16" Finished Crimp Dimension | For Hose OD: from 0.812" to 0.890"

861-26 by Dixon Valve | Large Hose Crimper Die | for 860 Series Crimper | 13/16" Finished Crimp Dimension | For Hose OD: from 0.812" to 0.890"

Save $3.73 Save $3.73
$33.53
$33.53 - $33.53
$33.53
$29.80
$29.80 - $29.80
$29.80

Dixon Valve
Large Hose Crimper Die

For crimping 1/2" to 1" (15mm to 25mm) ID hoses with larger OD's, from 11/16" to 1-1/2" (22mm to 40mm).

Crimps standard brass or aluminum ferrules.

Use with Dixon's 860 Large Hose Crimper.
Specifications for Variant SKU: 861-26 Dixon
Series: 861 Series
Notes:
  • Crimper is sold without dies. They must be ordered separately.
  • Order separate dies for each hose diameter.
Large Hose Crimper Dies for 860 Series Crimper
Die Part Hose OD/
Finished Crimp Dimension		 Hose OD
from to
861-22 11/16" 0.687" 0.765"
861-23 23/32" 0.718" 0.796"
861-24 3/4" 0.750" 0.828"
861-25 25/32" 0.781" 0.860"
861-26 13/16" 0.812" 0.890"
861-27 27/32" 0.843" 0.921"
861-28 7/8" 0.875" 0.953"
861-29 29/32" 0.906" 0.985"
861-30 15/16" 0.937" 1.010"
861-31 31/32" 0.968" 1.040"
861-32 1" 1.000" 1.070"
861-33 1-1/32" 1.031" 1.110"
861-34 1-1/16" 1.062" 1.114"
861-36 1-1/8" 1.125" 1.208"
861-38 1-3/16" 1.187" 1.265"
861-40 1-1/4" 1.250" 1.321"
861-42 1-5/16" 1.312" 1.390"
861-44 1-3/8" 1.375" 1.453"
861-46 1-7/16" 1.437" 1.551"
861-48 1-1/2" 1.500" 1.578"
