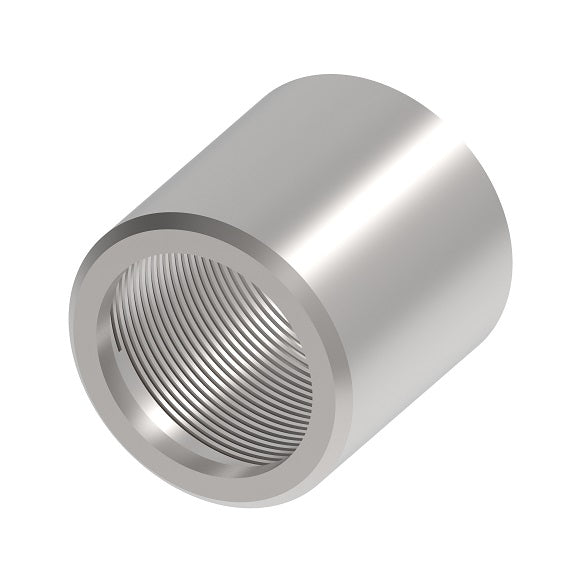

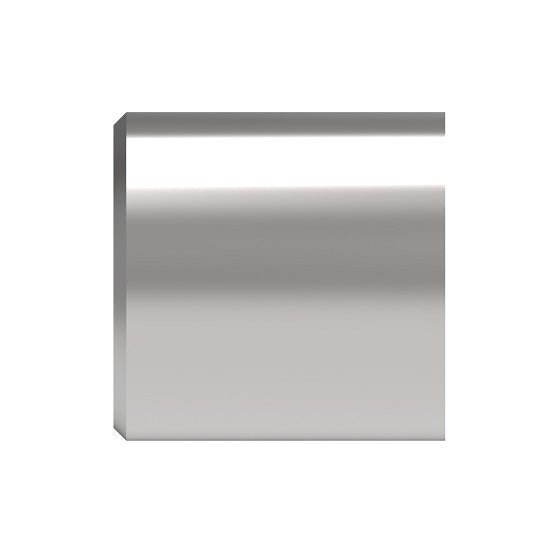

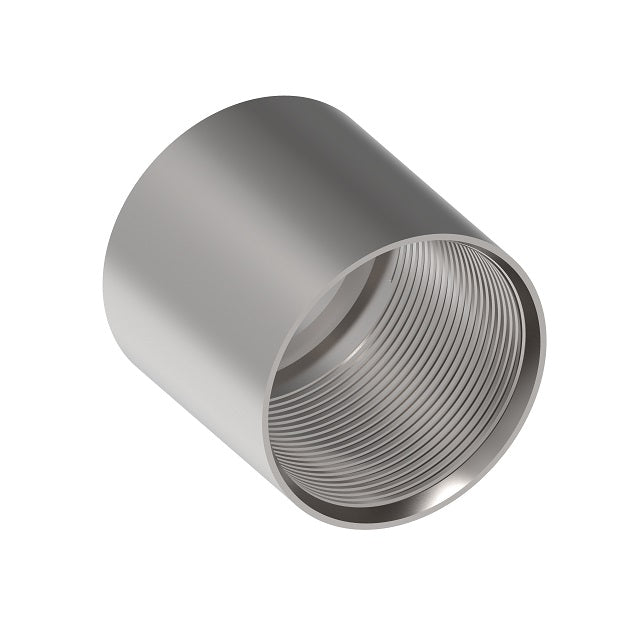

870000-20-CZ by Danfoss | Conv-O-Crimp | Convoluted Hose Fitting (Collar Only) | -20 Hose Size | Carbon Steel
870000-20-CZ by Danfoss | Conv-O-Crimp | Convoluted Hose Fitting (Collar Only) | -20 Hose Size | Carbon Steel
870000-20-CZ by Danfoss | Conv-O-Crimp | Convoluted Hose Fitting (Collar Only) | -20 Hose Size | Carbon Steel
870000-20-CZ by Danfoss | Conv-O-Crimp | Convoluted Hose Fitting (Collar Only) | -20 Hose Size | Carbon Steel

870000-20-CZ by Danfoss | Conv-O-Crimp | Convoluted Hose Fitting (Collar Only) | -20 Hose Size | Carbon Steel

$23.62 - $23.62
$23.62
$23.62 - $23.62
$23.62

Conv-O-Crimp by Danfoss
Crimp Fitting for Everflex Hose - Convoluted Hose Fitting Collar Only
Specifications for Variant SKU: 870000-20-CZ Danfoss
Shape (Orientation): Straight
Material(s): Carbon Steel
Compatible with the following Series: Conv-O-Crimp Series
About:
  • The unique Everflex Conv-O-Crimp hose end are shipped with factory-installed Teflon™ fluoropolymer sleeves on the insert. This eliminates the time consuming, costly and subjective step of wrapping the hose end with Teflon™ fluoropolymer tape before assembly. The end result is a hose assembly system that is second to none in ease of assembly fabrication.
WARNING:
  • Selection of the proper end fitting for the hose end application is essential to the proper operation and safe use of the hose and related equipment. Inadequate attention to the selection of the end fittings for your application can result in leaking or the hose end blowing off the hose, leading to serious personal injury, death or property damage.
Compatible Hose:
  • Conv-O-Crimp Hose
Part Number
Collar Only
Carbon Steel		 Part Number
Collar Only
304 Stainless steel		 Hose Size
870000-8-CZ 870000-8-304 -08
870000-12-CZ 870000-12-304 -12
870000-16-CZ 870000-16-304 -16
870000-20-CZ 870000-20-304 -20
870000-24-CZ 870000-24-304 -24
870000-32-CZ 870000-32-304 -32

** To determine the correct length of hose, subtract the cut-off factor for each end fitting from the overall length of assembly.

Note: Drawings may differ from actual parts.
