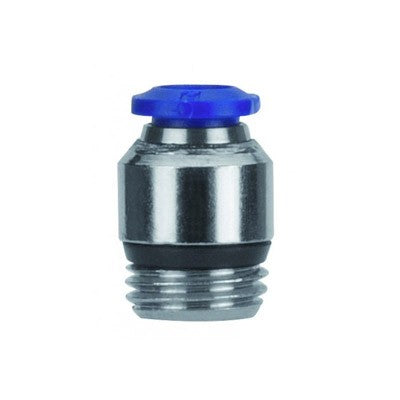

87010-53-02 AIGNEP | 87 / 88 Series | Straight Male Internal Hex | 5/32" Tube x 1/8" Swift-Fit Male | Pack of 10

87010-53-02 by AIGNEP | 87 / 88 Series | Male Internal Hex | 5/32" Tube x 1/8" Swift-Fit Male | Straight | Pack of 10

Save $0.11

$11.26

$11.26 - $11.26

$11.26

$11.15

$11.15 - $11.15

$11.15

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 87010-53-02 AIGNEP \| 10 \|
Series:	87 / 88 Series
Shape (Orientation):	Straight
Ends Configuration:	5/32in Push-to-Connect, 1/8in Male Swift-Fit
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Straight Male With Internal Hex

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

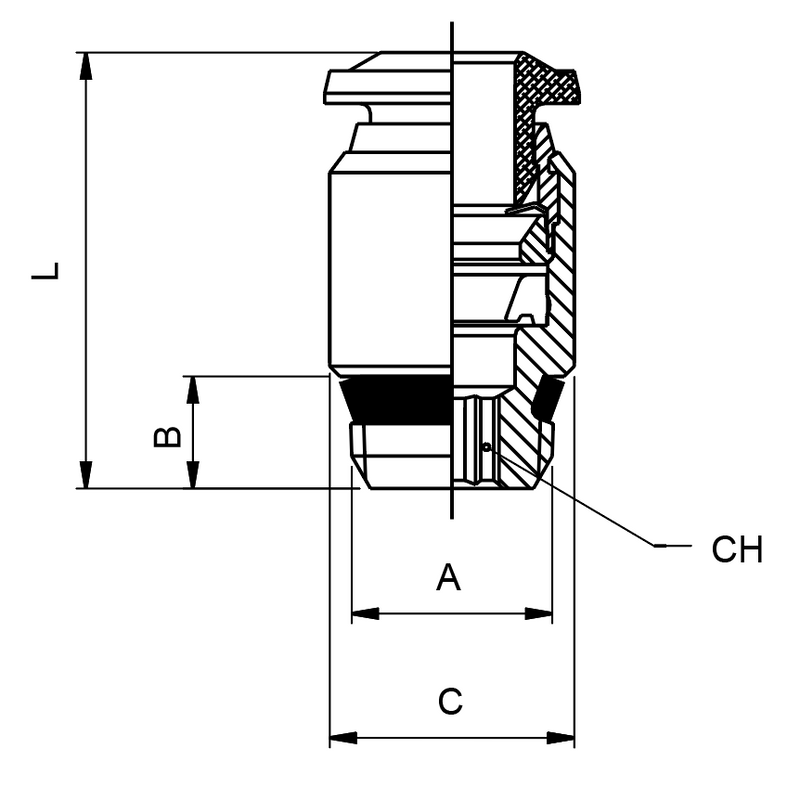

Product Number	Tube	A	B (IN)	B	C	L	CH
87010-02-32	1/8"	10-32	0.157"	4 mm	8 mm	18 mm	2.5 mm
87010-53-32	5/32"	10-32	0.157"	4 mm	9.8 mm	20 mm	2.5 mm
87010-53-02	5/32"	1/8"	0.217"	5.5 mm	11 mm	18 mm	3 mm
87010-04-32	1/4"	10-32	0.157"	4 mm	12 mm	23.5 mm	2.5 mm
87010-04-02	1/4"	1/8"	0.217"	5.5 mm	12 mm	21.5 mm	4 mm
87010-04-04	1/4"	1/4"	0.267"	7 mm	14 mm	21.5 mm	4 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
