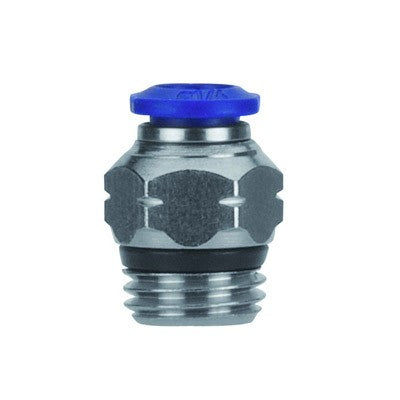

88020-04-32 AIGNEP | 87 / 88 Series | Straight Male | 1/4" Tube x 10/32 UNF Male | Pack of 10
88020-04-32 by AIGNEP | 87 / 88 Series | 1/4" Tube x 10/32 UNF Male | Straight | Pack of 10
88020-04-32 AIGNEP | 87 / 88 Series | Straight Male | 1/4" Tube x 10/32 UNF Male | Pack of 10

88020-04-32 by AIGNEP | 87 / 88 Series | 1/4" Tube x 10/32 UNF Male | Straight | Pack of 10

Save $0.16 Save $0.16
$16.00
$16.00 - $16.00
$16.00
$15.84
$15.84 - $15.84
$15.84

Package Quantity: 10 ea

Specifications for Variant SKU: 88020-04-32 AIGNEP | 10 |
Series: 87 / 88 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Push-to-Connect, 10-32 Male UNF
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Straight Male

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number Tube A B (IN) B L CH1 CH2
88020-02-32 1/8" 10-32 0.157" 4 mm 18 mm 8 mm 2 mm
88020-53-32 5/32" 10-32 0.157" 4 mm 21 mm 10 mm 2 mm
88020-04-32 1/4" 10-32 0.157" 4 mm 23.5 mm 13 mm 2 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
