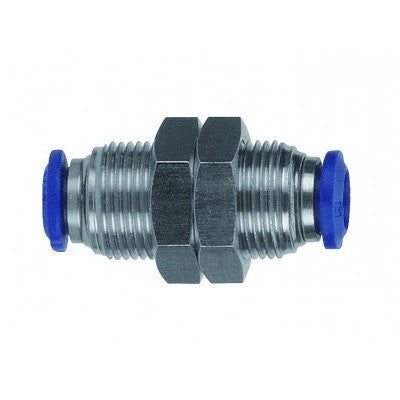

88050-08 AIGNEP | 87 / 88 Series | Bulkhead Union | 1/2" Tube | Pack of 10

88050-08 by AIGNEP | 87 / 88 Series | Bulkhead Union | 1/2" Tube | Pack of 10

Save $0.61

$61.48

$61.48 - $61.48

$61.48

$60.87

$60.87 - $60.87

$60.87

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 88050-08 AIGNEP \| 10 \|
Series:	87 / 88 Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Push-to-Connect, 1/2in Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Bulkhead Union

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

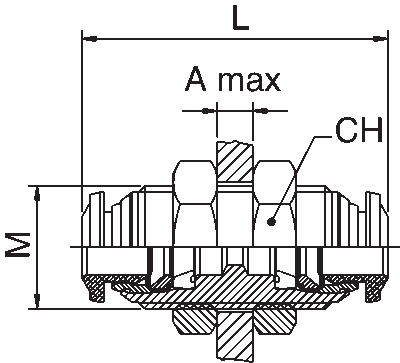

Tube	M	CH	L	A Max
88050-02	1/8"	M10 x 1	14 mm	26 mm	5 mm
88050-53	5/32"	M12 x 1	17 mm	32 mm	7 mm
88050-04	1/4"	M14 x 1	17 mm	36 mm	9.5 mm
88050-05	5/16"	M16 x 1	19 mm	37.5 mm	10.5 mm
88050-06	3/8"	M20 x 1	24 mm	44 mm	12.5 mm
88050-08	1/2"	M22 x 1	26 mm	49 mm	16.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
