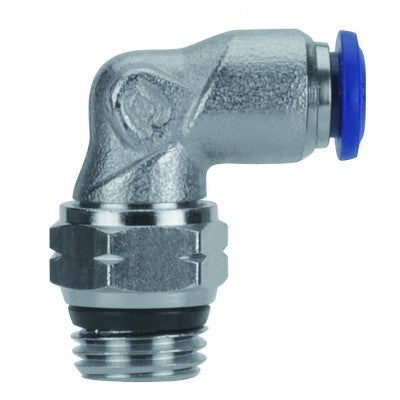

88115-02-32 AIGNEP | 87 / 88 Series | Swivel Male 90° Elbow | 1/8" Tube x 10/32 UNF Male | Pack of 10

88115-02-32 by AIGNEP | 87 / 88 Series | Swivel | 1/8" Tube x 10/32 UNF Male | 90° Elbow | Pack of 10

Save $16.00

$50.67

$50.67 - $50.67

$50.67

$34.67

$34.67 - $34.67

$34.67

Package Quantity: 10 EA

Specifications for Variant SKU: 88115-02-32 AIGNEP \| 10 \|
Series:	87 / 88 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/8in Push-to-Connect, 10-32 Male UNF
Material(s):	Nickel-Plated Brass

Swivel Elbow

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number	Tube	A	B (IN)	B	L1	L2	CH1	CH2
88115-02-32	1/8"	10-32	0.157"	4 mm	16.5 mm	19.5 mm	9 mm	8 mm
88115-53-32	5/32"	10-32	0.157"	4 mm	17 mm	19.5 mm	9 mm	8 mm
88115-04-32	1/4"	10-32	0.157"	4 mm	21 mm	22 mm	11 mm	8 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
