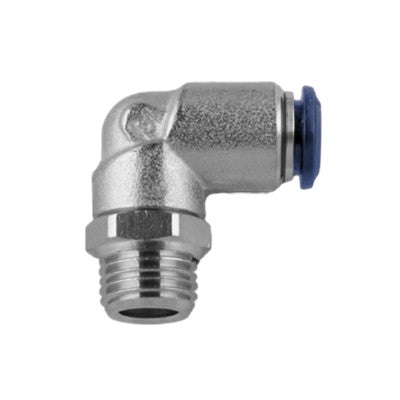

88117-04-02 AIGNEP | 87 / 88 Series | Swivel Male Elbow | 1/4" Tube x 1/8" PT | Pack of 10

88117-04-02 by AIGNEP | 87 / 88 Series | Swivel Male | 1/4" Tube x 1/8" PT | 90° Elbow | Pack of 10

Save $0.21

$20.74

$20.74 - $20.74

$20.74

$20.53

$20.53 - $20.53

$20.53

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 88117-04-02 AIGNEP \| 10 \|
Series:	87 / 88 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Push-to-Connect, 1/8in Male NPT
Material(s):	Nickel Plated Brass

Swivel Elbow - PTF

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass

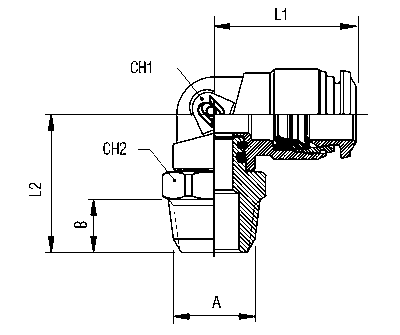

Product Number	Tube	A	B	L1	L2	CH1	CH2
88117-53-02	5/32"	1/8"	7 mm	18 mm	19.5 mm	9 mm	13 mm
88117-53-04	5/32"	1/4"	10.5 mm	18 mm	23 mm	9 mm	15 mm
88117-04-02	1/4"	1/8"	7 mm	21 mm	21.5 mm	11 mm	13 mm
88117-04-04	1/4"	1/4"	10.5 mm	21 mm	25 mm	11 mm	15 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
