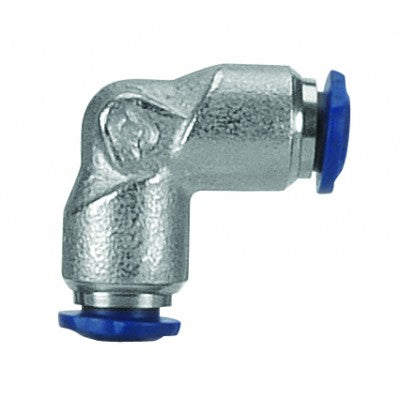

88130-08 AIGNEP | 87 / 88 Series | Union 90° Elbow | 1/2" Tube | Pack of 10
88130-08 by AIGNEP | 87 / 88 Series | Union | 1/2" Tube | 90° Elbow | Pack of 10
88130-08 AIGNEP | 87 / 88 Series | Union 90° Elbow | 1/2" Tube | Pack of 10

88130-08 by AIGNEP | 87 / 88 Series | Union | 1/2" Tube | 90° Elbow | Pack of 10

Save $30.31 Save $30.31
$75.78
$75.78 - $75.78
$75.78
$45.47
$45.47 - $45.47
$45.47

Package Quantity: 10 EA

Specifications for Variant SKU: 88130-08 AIGNEP | 10 |
Series: 87 / 88 Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Push-to-Connect, 1/2in Push-to-Connect, Some Ends Match
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Union 90° Elbow

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

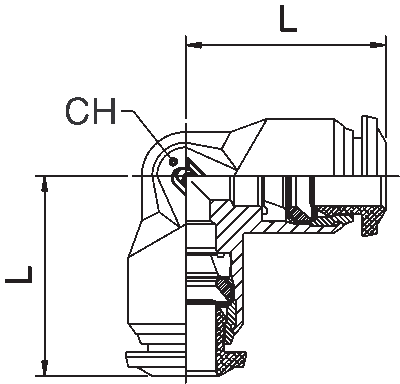

Product Number Tube L CH
88130-02 1/8" 17 mm 9 mm
88130-53 5/32" 17 mm 9 mm
88130-04 1/4" 21 mm 11 mm
88130-05 5/16" 23 mm 13 mm
88130-06 3/8" 26.5 mm 16 mm
88130-08 1/2" 30.5 mm 19 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
