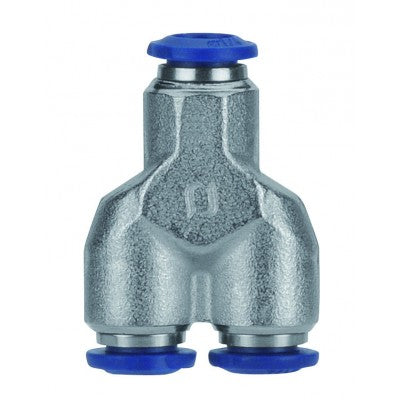

88310-02 AIGNEP | 87 / 88 Series | Union Y | 1/8" Tube | Pack of 10

88310-02 by AIGNEP | 87 / 88 Series | Union | 1/8" Tube | Y | Pack of 10

Save $25.29

$81.69

$81.69 - $81.69

$81.69

$56.40

$56.40 - $56.40

$56.40

Package Quantity: 10 ea

Specifications for Variant SKU: 88310-02 AIGNEP \| 10 \|
Series:	87 / 88 Series
Shape (Orientation):	Y
Ends Configuration:	1/8in Push-to-Connect, 1/8in Push-to-Connect, 1/8in Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Union Y

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

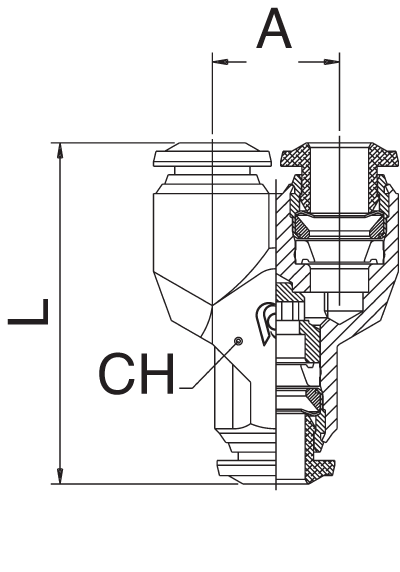

Tube	A	L	CH
88310-02	1/8"	10 mm	29 mm	11 mm
88310-53	5/32"	11 mm	32 mm	11 mm
88310-04	1/4"	13.5 mm	36.5 mm	13 mm
88310-05	5/16"	15.5 mm	41 mm	13 mm
88310-06	3/8"	18.5 mm	48 mm	18 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
