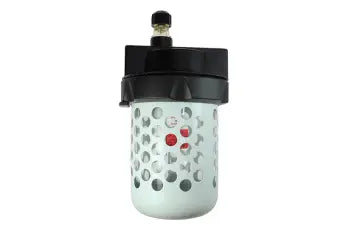

8843R by Coilhose | Heavy Duty Series Lubricator | Bowl Guard | 3/8" Pipe Size | Die Cast Aluminum

8843R by Coilhose | Heavy Duty Series Lubricator | Bowl Guard | 3/8" Pipe Size | Die Cast Aluminum

Save $62.33 Save $62.33
$155.82
$155.82 - $155.82
$155.82
$93.49
$93.49 - $93.49
$93.49
Coilhose Pneumatics - Filters, Regulators & Lubricators - Heavy Duty Series - Lubricators
Specifications for Variant SKU: 8843R Coilhose
Material(s): Aluminum, Polycarbonate
Overview:
  • The Heavy Duty Series Lubricators have a long established reputation for high quality and unsurpassed reliability. A tamperproof cap allows oil delivery rate to be locked in, and once oil delivery is set, proportional oil-to-air delivery assures constant even lubrication.
Features:
  • Mist atomizing sight glass.
  • Refills through fill port without requiring depressurization.
  • Quick fill plug option available.
  • Bowl guard supplied standard on 3/4" and 1". Optional on 1/4", 3/8" and 1/2".
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Maximum Supply Pressure: Plastic Bowl:150 PSI Metal Bowl:250 PSI Materials: Plastic Bowl: Polycarbonate Metal Bowl: Die Cast Aluminum Body: Die Cast Aluminum

Size Height Diameter Bowl Capacity Weight
1/4" & 3/8" 7" 3" 4 oz. 1 lbs.
1/2" 8" 3-1/2" 8 oz. 1-1/4 lbs.
3/4" & 1" 11-1/2" 5" 23 oz. 3-1/2 lbs.

Supply 100 PSI Regulated Pressure Pressure Drop
5 10 15
1/4" at 80 PSI 27.5 SCFM 39 SCFM 48 SCFM
3/8" at 80 PSI 27.5 SCFM 39 SCFM 48 SCFM
1/2" at 80 PSI 55 SCFM 79 SCFM 97 SCFM
3/4" at 80 PSI 110 SCFM 158 SCFM 195 SCFM
1" at 80 PSI 110 SCFM 158 SCFM 195 SCFM
Note: All values are approximate.

Model Pipe Size Material Max Pressure
8842 1/4" Polycarbonate 150 PSI
8842-CS* 1/4" Polycarbonate 150 PSI
8842M 1/4" Metal 250 PSI
8842R 1/4" Polycarbonate with Bowl Guard 150 PSI

8843 3/8" Polycarbonate 150 PSI
8843-CS* 3/8" Polycarbonate 150 PSI
8843M 3/8" Metal 250 PSI
8843R 3/8" Polycarbonate with Bowl Guard 150 PSI

8844 1/2" Polycarbonate 150 PSI
8844R 1/2" Polycarbonate with Bowl Guard 150 PSI
8844M 1/2" Metal 250 PSI

8846 3/4" Polycarbonate with Bowl Guard 150 PSI
8846M 3/4" Metal 250 PSI

8848 1" Polycarbonate with Bowl Guard 150 PSI
8848M 1" Metal 250 PSI
* Clamshell Packaging
