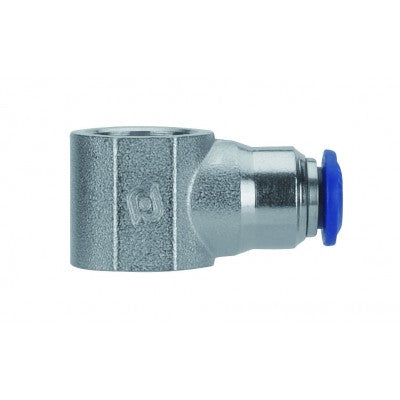

88500-02-02 AIGNEP | 87 / 88 Series | Single Banjo Body | 1/8" Tube x 1/8" | Pack of 10
88500-02-02 by AIGNEP | 87 / 88 Series | Single Banjo Body | 1/8" Tube x 1/8" | Pack of 10
88500-02-02 AIGNEP | 87 / 88 Series | Single Banjo Body | 1/8" Tube x 1/8" | Pack of 10

88500-02-02 by AIGNEP | 87 / 88 Series | Single Banjo Body | 1/8" Tube x 1/8" | Pack of 10

Save $14.96 Save $14.96
$37.40
$37.40 - $37.40
$37.40
$22.44
$22.44 - $22.44
$22.44

Package Quantity: 10 ea

Specifications for Variant SKU: 88500-02-02 AIGNEP | 10 |
Series: 87 / 88 Series
Shape (Orientation): Banjo
Ends Configuration: 1/8in Push-to-Connect, 1/8in Female Banjo
Material(s): Nickel Plated Brass

Single Banjo Body

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass

Product Number Tube A B (IN) B L CH
88500-02-02 1/8" 1/8" 0.591" 15 mm 19.5 mm 14 mm
88500-53-32 5/32" 10-32 0.492" 12.5 mm 19 mm -
88500-53-02 5/32" 1/8" 0.591" 15 mm 21 mm 14 mm
88500-04-02 1/4" 1/8" 0.591" 15 mm 22.5 mm 14 mm
88500-04-04 1/4" 1/4" 0.669" 17 mm 25 mm 18 mm
88500-06-04 3/8" 1/4" 0.669" 17 mm 29 mm 18 mm
88500-06-06 3/8" 3/8" 0.787" 20 mm 30.5 mm 21 mm
88500-08-06 1/2" 3/8" 0.787" 20 mm 32 mm 21 mm
88500-08-08 1/2" 1/2" 0.944" 24 mm 35 mm 25 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
