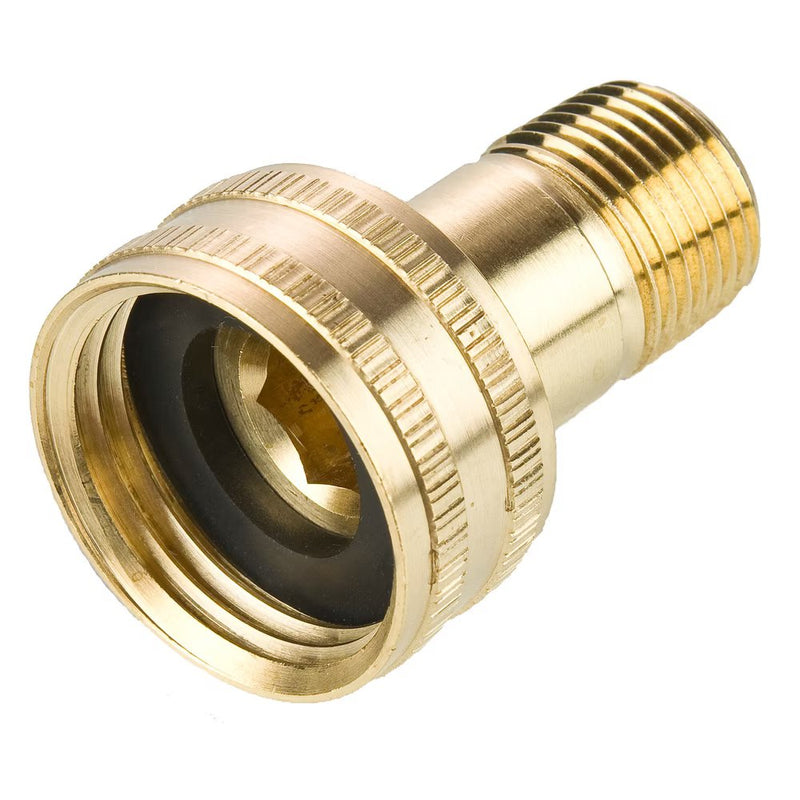

88GH-12-4 by Parker | Garden Hose Fittings | 3/4" Female Swivel Hose Thread x 1/4" Male Pipe Thread | 1.69" Length | Straight | Brass | Pack of 25

Save $149.55

$373.88

$373.88 - $373.88

$373.88

$224.33

$224.33 - $224.33

$224.33

by Parker Hannifin
Garden Hose Fittings:Swivel Connector Female Garden Hose to Male Pipe 88GH

Package Quantity: 25 Units

Specifications for Variant SKU: 88GH-12-4 Parker \| 25 \|
Series:	88GH Series
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Rubber
Special Properties:	Swivel

Specification:
Product Features:	All brass construction 3/4” garden hose thread Rubber washer Flare, hose barb and pipe end configurations High Flow couplings
Markets:	Industrial Mobile Factory/process automation
Applications:	Water Line
Temperature Range:	+35° to +100° F at 75 PSI (+1.6° to +37.7° C at 5.1 bar)
Pressure Range:	Up to 150 PSI (10.3 bar)
Compatible Tubing:	Garden Hose


Part Number	Hose Thread	Pipe Thread	L	M	Flow Diameter (D)
88GH-12-4	3/4"	1/4"	1.69"	1.15"	.312"
88GH-12-6	3/4"	3/8"	1.69"	1.15"	.406"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
