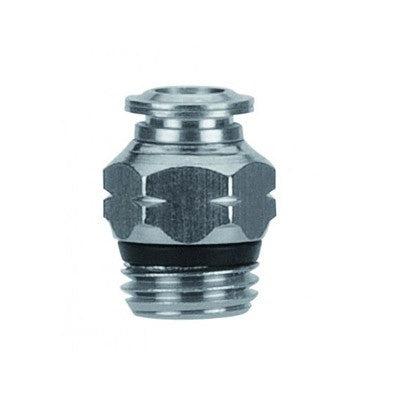

89000-05-02 AIGNEP | 89 Series | Straight Male Metal Release Collet | 5/16" Tube x 1/8" Swift-Fit Male | Pack of 10
89000-05-02 by AIGNEP | 89 Series | Male Metal Release Collet | 5/16" Tube x 1/8" Swift-Fit Male | Straight | Pack of 10
89000-05-02 AIGNEP | 89 Series | Straight Male Metal Release Collet | 5/16" Tube x 1/8" Swift-Fit Male | Pack of 10

89000-05-02 by AIGNEP | 89 Series | Male Metal Release Collet | 5/16" Tube x 1/8" Swift-Fit Male | Straight | Pack of 10

Save $12.61 Save $12.61
$33.68
$33.68 - $33.68
$33.68
$21.07
$21.07 - $21.07
$21.07

Package Quantity: 10 EA

Specifications for Variant SKU: 89000-05-02 AIGNEP | 10 |
Series: 89 Series
Shape (Orientation): Straight
Ends Configuration: 5/16in Push-to-Connect, 1/8in Male Swift-Fit
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Straight Male Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT
Product Number Tube A B (IN) B L CH1 CH2
89000-02-32 1/8" 10-32 0.197" 5 mm 19 mm 8 mm 2 mm
89000-02-02 1/8" 1/8" 0.217" 5.5 mm 16.5 mm 11 mm 2 mm
89000-02-04 1/8" 1/4" 0.276" 7 mm 18.5 mm 14 mm 2 mm
89000-53-32 5/32" 10-32 0.197" 5 mm 21 mm 10 mm 2 mm
89000-53-02 5/32" 1/8" 0.216" 5.5 mm 18 mm 11 mm 3 mm
89000-53-04 5/32" 1/4" 0.275" 7 mm 19 mm 14 mm 3 mm
89000-04-32 1/4" 10-32 0.197" 5 mm 24.5 mm 13 mm 2 mm
89000-04-02 1/4" 1/8" 0.217" 5.5 mm 21.5 mm 13 mm 4 mm
89000-04-04 1/4" 1/4" 0.276" 7 mm 20.5 mm 14 mm 4 mm
89000-04-06 1/4" 3/8" 0.295" 7.5 mm 23 mm 17 mm 4 mm
89000-05-02 5/16" 1/8" 0.216" 5.5 mm 24.5 mm 14 mm 5 mm
89000-05-04 5/16" 1/4" 0.275" 7 mm 22 mm 14 mm 6 mm
89000-05-06 5/16" 3/8" 0.295" 7.5 mm 23 mm 17 mm 6 mm
89000-05-08 5/16" 1/2" 0.354" 9 mm 23.5 mm 21 mm 6 mm
89000-06-02 3/8" 1/8" 0.217" 5.5 mm 27.5 mm 17 mm 5 mm
89000-06-04 3/8" 1/4" 0.276" 7 mm 27.5 mm 17 mm 7 mm
89000-06-06 3/8" 3/8" 0.295" 7.5 mm 25.5 mm 17 mm 7 mm
89000-06-08 3/8" 1/2" 0.354" 9 mm 25.5 mm 21 mm 7 mm
89000-08-02 1/2'' 1/8" 0.217" 5.5 mm 32 mm 20 mm 5 mm
89000-08-04 1/2" 1/4" 0.276" 7 mm 31 mm 20 mm 7 mm
89000-08-06 1/2" 3/8" 0.295" 7.5 mm 31 mm 20 mm 9 mm
89000-08-08 1/2" 1/2" 0.354" 9 mm 31 mm 21 mm 10 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
