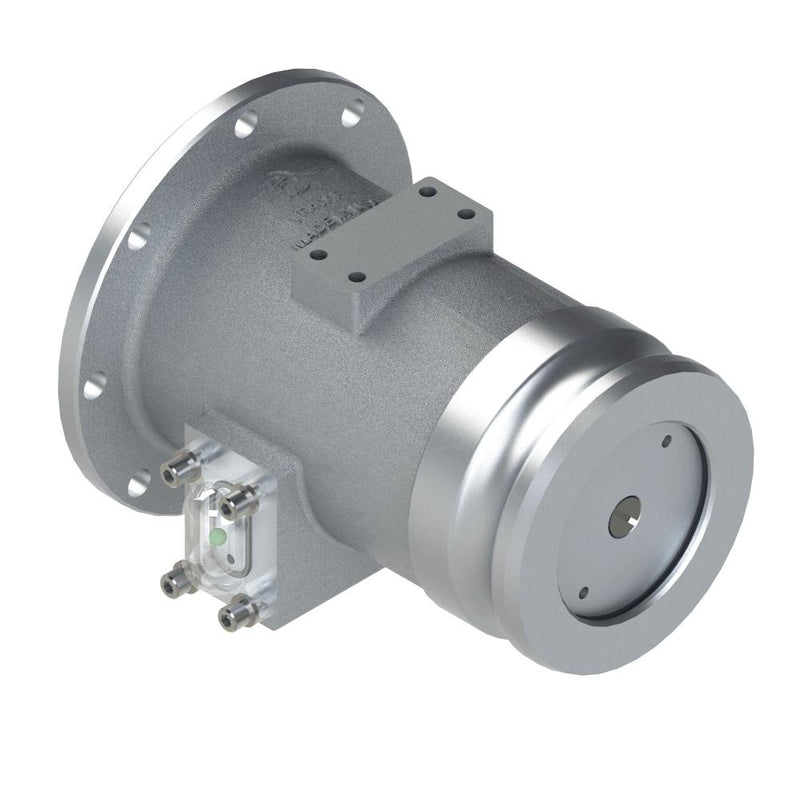

89010403A (VR40AF) by PT-Coupling | Petroleum Handling Vapor Recovery Breakaway Adapter | with Sight Glass | 4" Adapter x 4" Tank Truck Flange | Aluminum

89010403A (VR40AF) by PT-Coupling | Petroleum Handling Vapor Recovery Breakaway Adapter | with Sight Glass | 4" Adapter x 4" Tank Truck Flange | Aluminum

Save $131.50 Save $131.50
$354.25
$354.25 - $354.25
$354.25
$222.75
$222.75 - $222.75
$222.75

PT Coupling
Petroleum Handling Vapor Recovery | Type VR40AF | Vapor Recovery Breakaway Adapter x Tank Truck Flange

Made in the USA.
Specifications for Variant SKU: 89010403A PT-Coupling
Series: Petroleum Handling
Shape (Orientation): Straight
Material(s): Aluminum
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Equipped with sight glass for easy detection of accidental overfill. 3/4" NPT drain plug for easy removal of overfilled product. Drilled mounting surface for air interlock valve. Available with and without sight glass.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Description Adapter
Size		 TTMA Flange
Size		 Overall
Length
(A)		 Bolt Hole
Diameter
(J)		 Number of
Holes
(K)		 Bolt Circle
Diameter
(L)		 Flange
Diameter		 Drain Plug
Size
(NPT)
VR40AF 89010402A Assembly without Sight Glass 4" 4" 8" 0.44" 8 5.88" 6.63" 0.75"
VR40AF 89010403A Assembly with Sight Glass 4" 4" 8" 0.44" 8 5.88" 6.63" 0.75"
