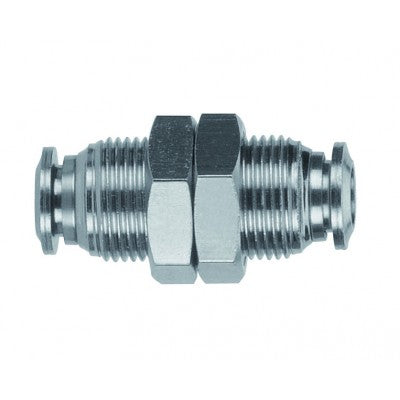

89050-02 AIGNEP | 89 Series | Bulkhead Union Metal Release Collet | 1/8" Tube | Pack of 10

89050-02 by AIGNEP | 89 Series | Bulkhead Union Metal Release Collet | 1/8" Tube | Pack of 10

Save $22.71

$68.71

$68.71 - $68.71

$68.71

$46.00

$46.00 - $46.00

$46.00

Package Quantity: 10 ea

Specifications for Variant SKU: 89050-02 AIGNEP \| 10 \|
Series:	89 Series
Shape (Orientation):	Straight
Ends Configuration:	1/8in Push-to-Connect, 1/8in Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Bulkhead Union Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

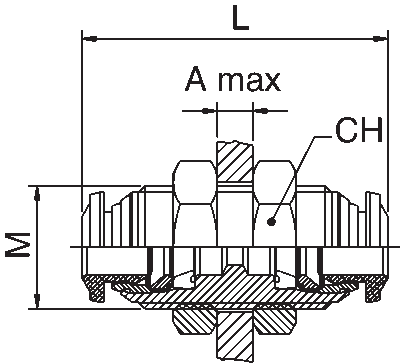

Product Number	Tube	M	CH	L	A Max.
89050-02	1/8"	M10 x 1	14 mm	26 mm	5 mm
89050-04	1/4"	M14 x 1	17 mm	35 mm	9.5 mm
89050-06	3/8"	M20 x 1	24 mm	42 mm	12.5 mm
89050-08	1/2"	M22 x 1	26 mm	48 mm	16.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
