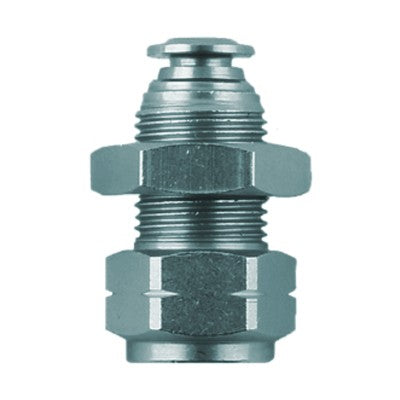

89055-08-06 AIGNEP | 89 Series | Female Bulkhead Connector Metal Release Collet | 1/2" Tube x 3/8" NPTF Female | Pack of 10

89055-08-06 by AIGNEP | 89 Series | Female Bulkhead Connector Metal Release Collet | 1/2" Tube x 3/8" NPTF Female | Pack of 10

Save $50.45

$126.13

$126.13 - $126.13

$126.13

$75.68

$75.68 - $75.68

$75.68

Package Quantity: 10 ea

Specifications for Variant SKU: 89055-08-06 AIGNEP \| 10 \|
Series:	89 Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Push-to-Connect, 3/8in Female NPTF
Material(s):	Nickel Plated Brass

Female Bulkhead Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass

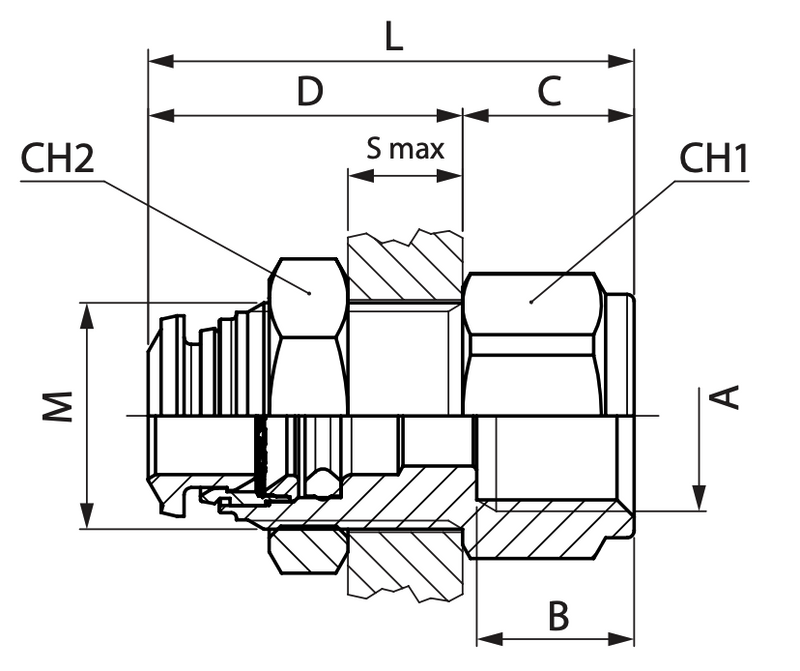

Product Number	Tube	M	A	B	C	CH1	CH2	D	L	S Max
89055-53-02	5/32"	M12 x 1	1/8"	9.5 mm	10 mm	15 mm	17 mm	19 mm	29 mm	7 mm
89055-04-02	1/4"	M14 x 1	1/8"	9.5 mm	10 mm	16 mm	17 mm	21 mm	31 mm	8 mm
89055-04-04	1/4"	M14 x 1	1/4"	13.5 mm	15 mm	16 mm	17 mm	21 mm	36 mm	8 mm
89055-05-02	5/16"	M16 x 1	1/8"	9.5 mm	10 mm	18 mm	19 mm	22 mm	32 mm	8 mm
89055-05-04	5/16"	M16 x 1	1/4"	13.5 mm	12 mm	18 mm	19 mm	22 mm	34 mm	8 mm
89055-06-06	3/8"	M20 x 1	3/8"	13.5 mm	14 mm	24 mm	24 mm	25.5 mm	39.5 mm	9.5 mm
89055-08-06	1/2"	M22 x 1	3/8"	13.5 mm	15 mm	24 mm	26 mm	27.5 mm	42.5 mm	10.5 mm
89055-08-08	1/2"	M22 x 1	1/2"	17.5 mm	20 mm	24 mm	26 mm	27.5 mm	47.5 mm	10.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
