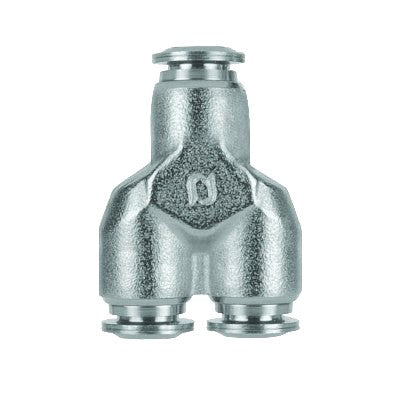

89310-02 AIGNEP | 89 Series | Union Y | 1/8" Tube | Pack of 10

89310-02 by AIGNEP | 89 Series | Union | 1/8" Tube | Y | Pack of 10

Save $0.50

$49.78

$49.78 - $49.78

$49.78

$49.28

$49.28 - $49.28

$49.28

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 89310-02 AIGNEP \| 10 \|
Series:	89 Series
Shape (Orientation):	Y
Ends Configuration:	1/8in Push-to-Connect, 1/8in Push-to-Connect, 1/8in Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Union Y Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

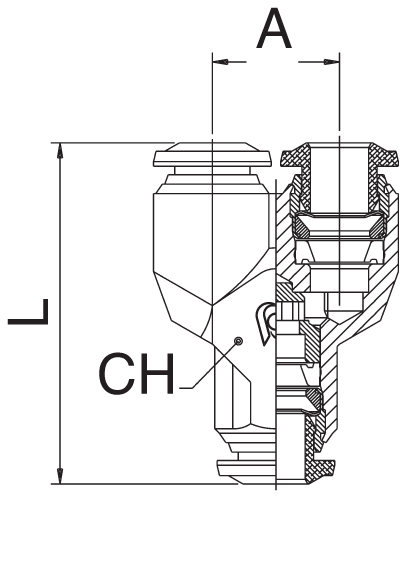

Product Number	Tube	A	L	CH	D
89310-02	1/8"	10 mm	29 mm	11 mm	10 mm
89310-53	5/32"	11 mm	32 mm	11 mm	10 mm
89310-04	1/4"	13.5 mm	36.5 mm	13 mm	12.5 mm
89310-06	3/8"	18.5 mm	48 mm	18 mm	17.5 mm
