89700-08-04 AIGNEP | 89 Series | Reducer | 1/2" Male Stud Metal Release Collet x 1/4" Tube | Pack of 10
89700-08-04 by AIGNEP | 89 Series | Reducer | 1/2" Male Stud Metal Release Collet x 1/4" Tube | Pack of 10
89700-08-04 AIGNEP | 89 Series | Reducer | 1/2" Male Stud Metal Release Collet x 1/4" Tube | Pack of 10

89700-08-04 by AIGNEP | 89 Series | Reducer | 1/2" Male Stud Metal Release Collet x 1/4" Tube | Pack of 10

Save $18.33 Save $18.33
$46.73
$46.73 - $46.73
$46.73
$28.40
$28.40 - $28.40
$28.40

Package Quantity: 10 ea

Specifications for Variant SKU: 89700-08-04 AIGNEP | 10 |
Series: 89 Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Tube Stub, 1/4in Push-to-Connect
Material(s): Nickel Plated Brass
Seal Material(s): NBR 70

Tube Reducer Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

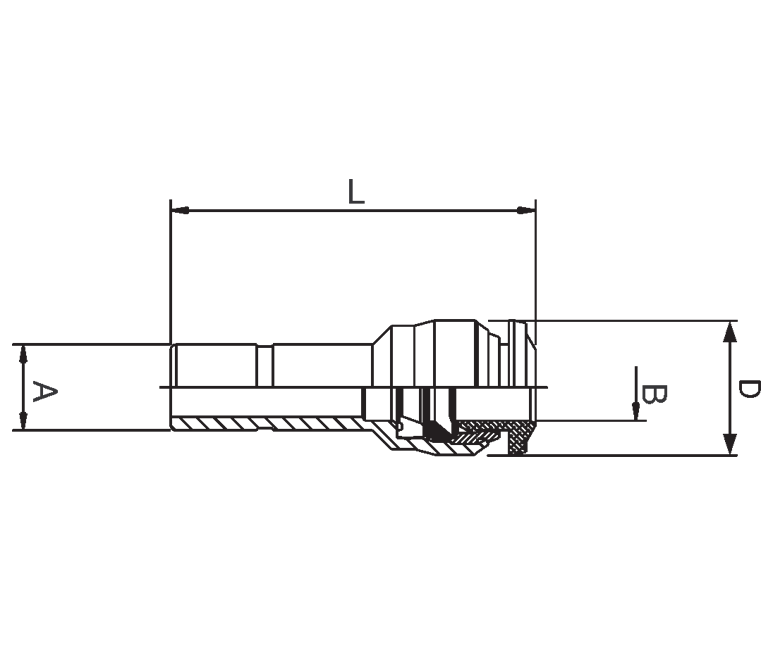

Product Number A B (IN) L D
89700-04-02 1/4" 1/8" 30 mm 10 mm
89700-04-53 1/4" 5/32" 30 mm 10 mm
89700-06-04 3/8" 1/4" 35.5 mm 12.5 mm
89700-06-05 3/8" 5/16" 35.5 mm 14 mm
89700-08-04 1/2" 1/4" 43 mm 12.5 mm
89700-08-06 1/2" 3/8" 43 mm 17.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
