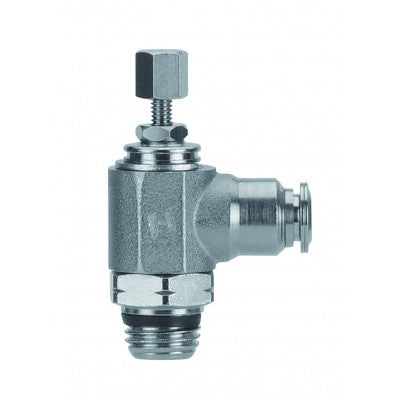

89958-02-32 AIGNEP | Functional (Flow Controls) Series | Flow Control Metal Release Collet | 1/8" Tube x 10-32 UNF Male | Flow Out Knob Adjustment

89958-02-32 by AIGNEP | Functional (Flow Controls) Series | Flow Control Metal Release Collet | 1/8" Tube x 10-32 UNF Male | Flow Out Knob Adjustment

Name: 89958-02-32 by AIGNEP | Functional (Flow Controls) Series | Flow Control Metal Release Collet | 1/8" Tube x 10-32 UNF Male | Flow Out Knob Adjustment
Brand: AIGNEP
SKU: 89958-02-32 AIGNEP
Price: 15.56 USD
Availability: InStock

Save $7.92

$23.48

$23.48 - $23.48

$23.48

$15.56

$15.56 - $15.56

$15.56

Specifications for Variant SKU: 89958-02-32 AIGNEP
Series:	Functional (Flow Controls) Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/8in Push-to-Connect, 10-32 Male UNF
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Inch Tube Flow Control (OUT)

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nickel-plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number	Tube	A	B (IN)	B	L1	L2 Min	L2 Max	CH	Code
89958-02-32	1/8"	10-32	0.157"	4 mm	19 mm	33 mm	37.5 mm	8 mm	C

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
