8KF8-SS by Dixon Valve | Hydraulic Quick Disconnect Coupling | K-Series | 1" Female NPTF x 1" ISO-A Interchange | Socket | Nitrile Seals | 316 Stainless Steel

Save $45.14

$406.29

$406.29 - $406.29

$406.29

$361.15

$361.15 - $361.15

$361.15

Dixon Valve & Coupling
Hydraulic Coupling: K-Series ISO-A Interchange Coupler (Female Threads)

Quantity

Specifications for Variant SKU: 8KF8-SS Dixon
Series:	K-Series
Shape (Orientation):	Straight
Ends Configuration:	1in Female ISO-A QD Interchange, 1in Female NPTF
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	Interchangeable to ISO7241 Series 'A' Parker 6600-Series, Danfoss/Aeroquip/Eaton FD56 (5600) Faster ANV, Hansen HA 15000, Safeway S56-Series

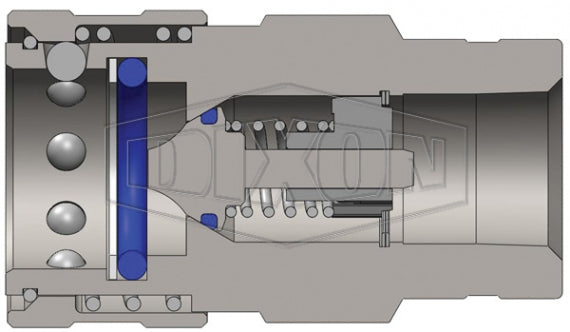

Construction:	Machined components are manufactured using solid bar stock. Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS Compliant Trivalent Chrome. Steel coupler sleeves are hardened to resist deformation and maximize service life. Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C). Couplers have a PTFE Anti-Extrusion ring. Valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection.
Features:	Poppet style shut-off valve.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

K-Series \| ISO-A Interchange Coupler (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Max. Operating Pressure	Burst Pressure
2KF1	Socket/Female	1/4"	1/8" - 27 Female NPTF	Steel	1.89" (47.9mm)	1.00" (25.4mm)	3/4"	5000 PSI (345 bar)	18270 PSI (1200 bar)
2KF2	Socket/Female	1/4"	1/4" - 18 Female NPTF	Steel	1.89" (47.9mm)	1.00" (25.4mm)	3/4"	5000 PSI (345 bar)	18270 PSI (1200 bar)
2KF2-SS	Socket/Female	1/4"	1/4" - 18 Female NPTF	316 Stainless	1.89" (47.9mm)	1.00" (25.4mm)	3/4"	4,500 PSI (300 bar)	30,500 PSI (2,100 bar)
2KBF2	Socket/Female	1/4"	1/4" - 19 Female BSPP	Steel	1.89" (47.9mm)	1.00" (25.4mm)	3/4"	5,000 PSI (345 bar)	18,270 PSI (1,200 bar)
2KBF2-SS	Socket/Female	1/4"	1/4" - 19 Female BSPP	316 Stainless	1.89" (47.9mm)	1.00" (25.4mm)	3/4"	4,500 PSI (300 bar)	30,500 PSI (2,100 bar)
2KOF2	Socket/Female	1/4"	7/16" - 20 Female ORB	Steel	1.89" (47.9mm)	1.00" (25.4mm)	3/4"	5000 PSI (345 bar)	18270 PSI (1200 bar)
3KF3	Socket/Female	3/8"	3/8" - 18 Female NPTF	Steel	2.23" (56.5mm)	1.19" (30.2mm)	7/8"	4000 PSI (275 bar)	18270 PSI (1200 bar)
3KF3-SS	Socket/Female	3/8"	3/8" - 18 Female NPTF	316 Stainless	2.23" (56.5mm)	1.19" (30.2mm)	7/8"	3,750 PSI (250 bar)	16,000 PSI (1,100 bar)
3KBF3	Socket/Female	3/8"	3/8" - 19 Female BSPP	Steel	2.23" (56.5mm)	1.19" (30.2mm)	7/8"	4000 PSI (275 bar)	18270 PSI (1200 bar)
3KBF3-SS	Socket/Female	3/8"	3/8" - 19 Female BSPP	316 Stainless	2.23" (56.6mm)	1.19" (30.2mm)	7/8"	3,750 PSI (250 bar)	16,000 PSI (1,100 bar)
3KOF3	Socket/Female	3/8"	9/16" - 18 Female ORB	Steel	2.23" (56.6mm)	1.19" (30.2mm)	7/8"	4000 PSI (275 bar)	18270 PSI (1200 bar)
4KF4	Socket/Female	1/2"	1/2" - 14 Female NPTF	Steel	2.62" (66.5mm)	1.49" (37.8mm)	1-1/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)
4KF4-SS	Socket/Female	1/2"	1/2" - 14 Female NPTF	316 Stainless	2.62" (66.5mm)	1.49" (37.8mm)	1-1/16"	3,750 PSI (250 bar)	18,000 PSI (1,200 bar)
4KBF4	Socket/Female	1/2"	1/2" - 14 Female BSPP	Steel	2.62" (66.5mm)	1.49" (37.8mm)	1-1/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)
4KBF4-SS	Socket/Female	1/2"	1/2" - 14 Female BSPP	316 Stainless	2.62" (66.5mm)	1.49" (37.8mm)	1-1/16"	3,750 PSI (250 bar)	18,000 PSI (1,200 bar)
4KOF4	Socket/Female	1/2"	3/4" - 16 Female ORB	Steel	2.62" (66.5mm)	1.49" (37.8mm)	1-1/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)
4KOF5	Socket/Female	1/2"	7/8" - 14 Female ORB	Steel	2.66" (67.6mm)	1.49" (37.8mm)	1-3/32"	4000 PSI (275 bar)	16500 PSI (1100 bar)
4KF6	Socket/Female	1/2"	3/4" - 14 Female NPTF	Steel	2.64" (66.9mm)	1.49" (37.8mm)	1-5/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)

6KF6	Socket/Female	3/4"	3/4" - 14 Female NPTF	Steel	3.23" (82.0mm)	1.86" (47.2mm)	1-5/16"	4000 PSI (275 bar)	14800 PSI (1000 bar)
6KF6-SS	Socket/Female	3/4"	3/4" - 14 Female NPTF	316 Stainless	3.23" (82.0mm)	1.86" (47.2mm)	1-5/16"	3,000 PSI (200 bar)	12,000 PSI (800 bar)
6KBF6	Socket/Female	3/4"	3/4" - 14 Female BSPP	Steel	3.23" (82.0mm)	1.86" (47.2mm)	1-5/16"	4000 PSI (275 bar)	14800 PSI (1000 bar)
6KBF6-SS	Socket/Female	3/4"	3/4" - 14 Female BSPP	316 Stainless	3.23" (82.0mm)	1.86" (47.2mm)	1-5/16"	3,000 PSI (200 bar)	12,000 PSI (800 bar)
6KOF6	Socket/Female	3/4"	1-1/16" - 12 Female ORB	Steel	3.23" (82.0mm)	1.86" (47.2mm)	1-5/16"	4000 PSI (275 bar)	14800 PSI (1000 bar)
8KF8	Socket/Female	1"	1" - 11-1/2 Female NPTF	Steel	3.88" (98.6mm)	2.10" (53.3mm)	1-5/8"	4000 PSI (275 bar)	12400 PSI (850 bar)
8KF8-SS	Socket/Female	1"	1" - 11-1/2 Female NPTF	316 Stainless	3.88" (98.6mm)	2.10" (53.3mm)	1-5/8"	3,000 PSI (200 bar)	12,000 PSI (800 bar)
8KBF8	Socket/Female	1"	1" - 11 Female BSPP	Steel	3.88" (98.6mm)	2.10" (53.3mm)	1-5/8"	4000 PSI (275 bar)	12400 PSI (850 bar)
8KBF8-SS	Socket/Female	1"	1" - 11 Female BSPP	316 Stainless	3.88" (98.6mm)	2.10" (53.3mm)	1-5/8"	3,000 PSI (200 bar)	12,000 PSI (800 bar)
8KOF8	Socket/Female	1"	1-5/16" - 12 Female ORB	Steel	3.88" (98.6mm)	2.10" (53.3mm)	1-5/8"	4000 PSI (275 bar)	12400 PSI (850 bar)

10KF10	Socket/Female	1-1/4"	1-1/4" - 11-1/2 Female NPT	Steel	4.61" (117.0mm)	2.76" (70.0mm)	2"	3000 PSI (200 bar)	12600 PSI (850 bar)
10KBF10	Socket/Female	1-1/4"	1-1/4" - 11 Female BSPP	Steel	4.61" (117.0mm)	2.76" (70.0mm)	2"	3000 PSI (200 bar)	12600 PSI (850 bar)
12KF12	Socket/Female	1-1/2"	1-1/2" - 11-1/2 Female NPTF	Steel	5.24" (133.0mm)	3.33" (84.5mm)	2-3/8"	3000 PSI (200 bar)	12600 PSI (850 bar)
12KBF12	Socket/Female	1-1/2"	1-1/2" - 11 Female BSPP	Steel	5.24" (133.0mm)	3.33" (84.5mm)	2-3/8"	3000 PSI (200 bar)	12600 PSI (850 bar)
16KF16	Socket/Female	2"	2" - 11-1/2 Female NPTF	Steel	6.50" (165.0mm)	3.94" (100.0mm)	3"	1450 PSI (100 bar)	5800 PSI (400 bar)
16KBF16	Socket/Female	2"	2" - 11 Female BSPP	Steel	6.50" (165.0mm)	3.94" (100.0mm)	3"	1450 PSI (100 bar)	5800 PSI (400 bar)

K-Series \| ISO-A Interchange Plug (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Max. Operating Pressure	Burst Pressure
K2F1	Plug/Male	1/4"	1/8" - 27 Female NPTF	Steel	1.22" (31.0mm)	0.87" (22.1mm)	3/4"	5000 PSI (345 bar)	18270 PSI (1200 bar)
K2F2	Plug/Male	1/4"	1/4" - 18 Female NPTF	Steel	1.22" (31.0mm)	0.87" (22.1mm)	3/4"	5000 PSI (345 bar)	18270 PSI (1200 bar)
K2F2-SS	Plug/Male	1/4"	1/4" - 18 Female NPTF	316 Stainless	1.22" (31.0mm)	0.87" (22.1mm)	3/4"	4,500 PSI (300 bar)	30,500 PSI (2,100 bar)
K2BF2	Plug/Male	1/4"	1/4" - 19 Female BSPP	Steel	1.22" (31.0mm)	0.87" (22.1mm)	3/4"	5000 PSI (345 bar)	18270 PSI (1200 bar)
K2BF2-SS	Plug/Male	1/4"	1/4" - 19 Female BSPP	316 Stainless	1.22" (31.0mm)	0.87" (22.1mm)	3/4"	4,500 PSI (300 bar)	30,500 PSI (2,100 bar)
K2OF2	Plug/Male	1/4"	7/16" - 20 Female ORB	Steel	1.22" (31.0mm)	0.87" (22.1mm)	3/4"	5000 PSI (345 bar)	18270 PSI (1200 bar)
K3F3	Plug/Male	3/8"	3/8" - 18 Female NPTF	Steel	1.70" (43.2mm)	0.97" (24.6mm)	7/8"	4000 PSI (275 bar)	18270 PSI (1200 bar)
K3F3-SS	Plug/Male	3/8"	3/8" - 18 Female NPTF	316 Stainless	1.70" (43.2mm)	0.97" (24.6mm)	7/8"	3,750 PSI (250 bar)	16,000 PSI (1,100 bar)
K3BF3	Plug/Male	3/8"	3/8" - 19 Female BSPP	Steel	1.70" (43.2mm)	0.97" (24.6mm)	7/8"	4000 PSI (275 bar)	18270 PSI (1200 bar)
K3BF3-SS	Plug/Male	3/8"	3/8" - 19 Female BSPP	316 Stainless	1.70" (43.2mm)	0.97" (24.6mm)	7/8"	3,750 PSI (250 bar)	16,000 PSI (1,100 bar)
K3OF3	Plug/Male	3/8"	9/16" - 18 Female ORB	Steel	1.70" (43.2mm)	0.97" (24.6mm)	7/8"	4000 PSI (275 bar)	18270 PSI (1200 bar)
K4F4	Plug/Male	1/2"	1/2" - 14 Female NPTF	Steel	1.77" (45.0mm)	1.23" (31.2mm)	1-1/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)
K4F4-SS	Plug/Male	1/2"	1/2" - 14 Female NPTF	316 Stainless	1.77" (45.0mm)	1.23" (31.2mm)	1-1/16"	3,750 PSI (250 bar)	18,000 PSI (1,200 bar)
K4BF4	Plug/Male	1/2"	1/2" - 14 Female BSPP	Steel	1.77" (45.0mm)	1.23" (31.2mm)	1-1/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)
K4BF4-SS	Plug/Male	1/2"	1/2" - 14 Female BSPP	316 Stainless	1.77" (45.0mm)	1.23" (31.2mm)	1-1/16"	3,750 PSI (250 bar)	18,000 PSI (1,200 bar)
K4OF4	Plug/Male	1/2"	3/4" - 16 Female ORB	Steel	1.77" (45.0mm)	1.23" (31.2mm)	1-1/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)
K4OF5	Plug/Male	1/2"	7/8" - 14 Female ORB	Steel	1.77" (45.0mm)	1.23" (31.2mm)	1-1/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)
K4F6	Plug/Male	1/2"	3/4" - 14 Female NPTF	Steel	1.77" (45.0mm)	1.37" (34.8mm)	1-3/16"	4000 PSI (275 bar)	16500 PSI (1100 bar)

K6F6	Plug/Male	3/4"	3/4" - 14 Female NPTF	Steel	2.43" (61.7mm)	1.44" (36.6mm)	1-5/16"	4000 PSI (275 bar)	14800 PSI (1000 bar)
K6F6-SS	Plug/Male	3/4"	3/4" - 14 Female NPTF	316 Stainless	2.43" (61.7mm)	1.44" (36.6mm)	1-5/16"	3,000 PSI (200 bar)	12,000 PSI (800 bar)
K6BF6	Plug/Male	3/4"	3/4" - 14 Female BSPP	Steel	2.43" (61.7mm)	1.44" (36.6mm)	1-5/16"	4000 PSI (275 bar)	14800 PSI (1000 bar)
K6BF6-SS	Plug/Male	3/4"	3/4-14 Female BSPP	316 Stainless	2.43" (61.7mm)	1.44" (36.6mm)	1-5/16"	3,000 PSI (200 bar)	12,000 PSI (800 bar)
K6OF6	Plug/Male	3/4"	1-1/16" - 12 Female ORB	Steel	2.43" (61.7mm)	1.44" (36.6mm)	1-5/16"	4000 PSI (275 bar)	14800 PSI (1000 bar)
K8F8	Plug/Male	1"	1" - 11-1/2 Female NPTF	Steel	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"	4000 PSI (275 bar)	12400 PSI (850 bar)
K8F8-SS	Plug/Male	1"	1" - 11-1/2 Female NPTF	316 Stainless	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"	3,000 PSI (200 bar)	12,000 PSI (800 bar)
K8BF8	Plug/Male	1"	1" - 11 Female BSPP	Steel	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"	4000 PSI (275 bar)	12400 PSI (850 bar)
K8BF8-SS	Plug/Male	1"	1" - 11 Female BSPP	316 Stainless	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"	3,000 PSI (200 bar)	12,000 PSI (800 bar)
K8OF8	Plug/Male	1"	1-5/16" - 12 Female ORB	Steel	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"	4000 PSI (275 bar)	12400 PSI (850 bar)
K10F10	Plug/Male	1-1/4"	1-1/4" - 11-1/2 Female NPTF	Steel	2.95" (75.0mm)	2.31" (58.7mm)	2"	3000 PSI (200 bar)	12600 PSI (850 bar)
K10BF10	Plug/Male	1-1/4"	1-1/4" - 11 Female BSPP	Steel	2.95" (75.0mm)	2.31" (58.7mm)	2"	3000 PSI (200 bar)	12600 PSI (850 bar)
K12F12	Plug/Male	1-1/2"	1-1/2" - 11-1/2 Female NPTF	Steel	3.29" (83.5mm)	2.74" (69.6mm)	2-3/8"	3000 PSI (200 bar)	12600 PSI (850 bar)
K12BF12	Plug/Male	1-1/2"	1-1/2" - 11 Female BSPP	Steel	3.29" (83.5mm)	2.74" (69.6mm)	2-3/8"	3000 PSI (200 bar)	12600 PSI (850 bar)
K16F16	Plug/Male	2"	2" - 11-1/2 Female NPTF	Steel	4.13" (105.0mm)	3.46" (87.9mm)	3"	1450 PSI (100 bar)	5800 PSI (400 bar)
K16BF16	Plug/Male	2"	2" - 11 Female BSPP	Steel	4.13" (105.0mm)	3.46" (87.9mm)	3"	1450 PSI (100 bar)	5800 PSI (400 bar)

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
