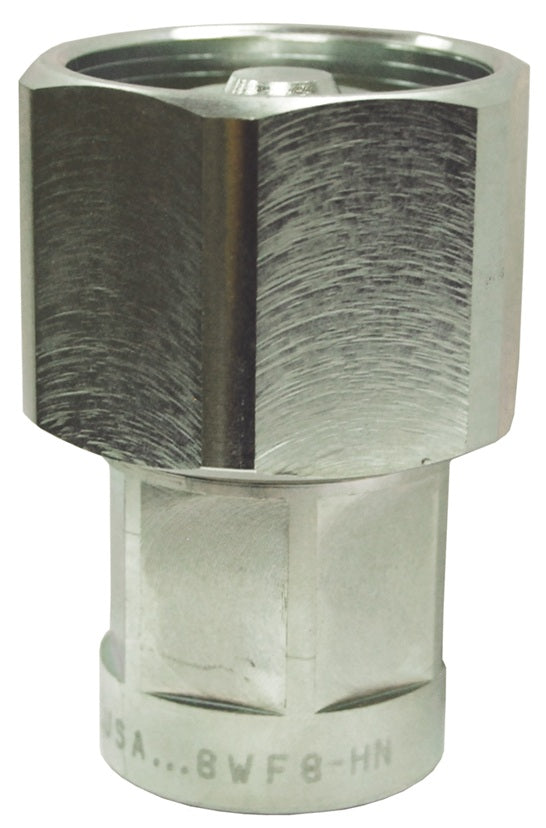

8WF8-HN by Dixon Valve | Hydraulic Quick Disconnect Coupling | W-Series | 1" Female NPTF x 1" Wingstyle Interchange Hex-Nut | Socket | Nitrile Seal | Steel
8WF8-HN by Dixon Valve | Hydraulic Quick Disconnect Coupling | W-Series | 1" Female NPTF x 1" Wingstyle Interchange Hex-Nut | Socket | Nitrile Seal | Steel
8WF8-HN by Dixon Valve | Hydraulic Quick Disconnect Coupling | W-Series | 1" Female NPTF x 1" Wingstyle Interchange Hex-Nut | Socket | Nitrile Seal | Steel

8WF8-HN by Dixon Valve | Hydraulic Quick Disconnect Coupling | W-Series | 1" Female NPTF x 1" Wingstyle Interchange Hex-Nut | Socket | Nitrile Seal | Steel

Save $5.45 Save $5.45
$64.53
$64.53 - $64.53
$64.53
$59.08
$59.08 - $59.08
$59.08

Dixon Valve & Coupling
Hydraulic Coupling: W-Series Wingstyle Interchange Hex-Nut Coupler (Female Threads)

Designed for applications requiring a coupling that can be connected under residual pressure with minimum spillage and air inclusion.

Widely used on dump trailer wet-line hydraulic systems and oil field equipment.

Not recommended for continuous hydraulic impulse applications.
Specifications for Variant SKU: 8WF8-HN Dixon
Series: W-Series
Shape (Orientation): Straight
Ends Configuration: 1in Female ISO-7241 Wing Nut QD Interchange, 1in Female NPTF
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Compatibility & Interchange:
  • Danfoss Eaton Aeroquip 5100-Series, Parker 6100-Series
  • Snap-Tite 78-Series, Faster Series-FB, Safeway S51-Series

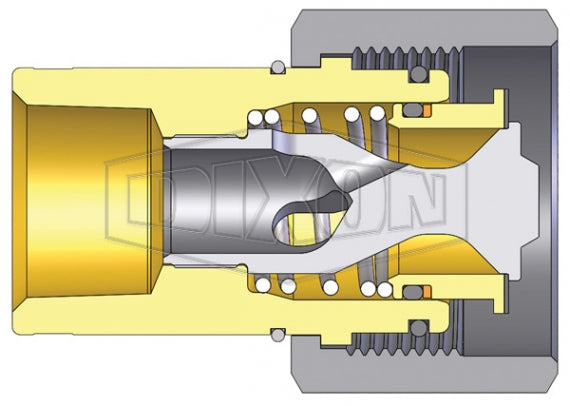

Construction:
  • Machined components are manufactured using solid steel and brass bar stock.
  • Stainless steel retaining rings and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS-compliant trivalent chrome.
  • Rugged steel wing nut for threaded connect and disconnect operation.
  • For steel models, coupler valve sleeve and plug valve are constructed of brass.
Seal Components:
  • Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C).
  • Couplings have a TPC-ET back-up ring on the main coupler valve sleeve to extend service life.
  • Main coupler valve has a bonded face-seal to improve seal integrity during pressurized connection/disconnection.
  • Plug valve seal is crimped to improve seal integrity and prolong service life; 1-1/2" has bonded plug valve.
  • External O-ring on plug indicates full connection and acts as a contamination shield in connected mode.
  • Redundant O-ring on the coupler body will engage plug for secondary sealing support.
Safety Notes:
  • Although wingstyle couplings are able to connect and disconnect while under pressure, it is recommended that hydraulic power supply be de-energized during connection to ensure operator safety. If it is not possible to de-energize the circuit, operators must be aware of their surroundings to ensure that an attachment or tool does not put them at risk, once hydraulic power is applied during the connection process.
  • W-series couplings are not recommended for continuous hydraulic impulse applications at rated pressures.
Additional Information:
W-Series | Wingstyle Interchange (Connected) Rated Pressure Chart
Body Size
Coupler/Plug
Max. Working Burst
1/4" 3,000 PSI 207 Bar 14,000 PSI 965 Bar
3/8" 3,000 PSI 207 Bar 13,000 PSI 897 Bar
3/4" 3,000 PSI 207 Bar 13,000 PSI 897 Bar
1" 4,000 PSI 276 Bar 16,000 PSI 1,103 Bar
1-1/4" 3,000 PSI 207 Bar 12,000 PSI 828 Bar
1-1/2" 2,500 PSI 172 Bar 10,000 PSI 690 Bar
W-Series | Wingstyle Interchange Hex-Nut Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
2WF1-B-HN Socket/Female 1/4" 1/8" - 27 Female NPTF Brass - - -
3WF2-B-HN Socket/Female 3/8" 1/4" - 18 Female NPTF Brass 2.33"
(59.2mm)		 3.45"
(87.6mm)		 0.81"
3WF3-B-HN Socket/Female 3/8" 3/8" - 18 Female NPTF Brass 2.33"
(59.2mm)		 3.45"
(87.6mm)		 0.81"
6WBF4-B-HN Socket/Female 3/4" 1/2" - 14 Female BSPP Brass 2.73"
(69.3mm)		 1.92"
(48.8mm)		 1-5/32"
6WF4-B-HN Socket/Female 3/4" 1/2" - 14 Female NPTF Brass 2.73"
(69.3mm)		 1.92"
(48.8mm)		 1-5/32"
6WF6-B-HN Socket/Female 3/4" 3/4" - 14 Female NPTF Brass 2.73"
(69.3mm)		 1.92"
(48.8mm)		 1-5/32"
8WF8-B-HN Socket/Female 1" 1" - 11-1/2 Female NPTF Brass 3.33"
(84.6mm)		 2.33"
(59.2mm)		 1-15/32"
8WF8-HN Socket/Female 1" 1" - 11-1/2 Female NPTF Steel 3.33"
(84.6mm)		 2.33"
(59.2mm)		 1-15/32"
10WF10-B-HN Socket/Female 1-1/4" 1-1/4" - 11-1/2 Female NPTF Brass 3.64"
(92.5mm)		 2.75"
(69.9mm)		 1-25/32"
10WBF10-B-HN Socket/Female 1-1/4" 1-1/4" - 11 Female NPTF Brass 3.64"
(92.5mm)		 2.75"
(69.9mm)		 1-25/32"
12WF12-B-HN Socket/Female 1-1/2" 1-1/2" - 11-1/2 Female NPTF Brass 3.67"
(93.2mm)		 3.01"
(76.5mm)		 2-7/64"
W-Series | Wingstyle Interchange Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
W2F1-B Plug/Male 1/4" 1/8"-27 Female NPTF Brass 1.88"
(47.8mm)		 1.04"
(26.3mm)		 15/16"
W3F2-B Plug/Male 3/8" 1/4"-18 Female NPTF Brass 2.30"
(58.4mm)		 1.25"
(31.8mm)		 1-1/4"
W3F3-B Plug/Male 3/8" 3/8"-18 Female BSPP Brass 2.40"
(61.0mm)		 1.25"
(31.8mm)		 1-1/4"
W6F4-B Plug/Male 3/4" 1/2" - 14 Female NPTF Brass 2.85"
(72.4mm)		 1.75"
(44.5mm)		 1-5/16"
W6BF4-B Plug/Male 3/4" 1/2" - 14 Female BSPP Brass 2.85"
(72.4mm)		 1.75"
(44.5mm)		 1-5/16"
W6F6-B Plug/Male 3/4" 3/4" - 14 Female NPTF Brass 2.85"
(72.4mm)		 1.75"
(44.5mm)		 1-5/16"
W6BF6-B Plug/Male 3/4" 3/4" - 14 Female BSPP Brass 2.85"
(72.4mm)		 1.75"
(44.5mm)		 1-5/16"
W8F8-B Plug/Male 1" 1" - 11-1/2 Female NPTF Brass 3.15"
(80.0mm)		 2.00"
(50.8mm)		 1-9/16"
W8F8 Plug/Male 1" 1" - 11-1/2 Female NPTF Steel 3.15"
(80.0mm)		 2.00"
(50.8mm)		 1-9/16"
W8BF8-B Plug/Male 1" 1" - 11 Female BSPP Brass 3.15"
(80.0mm)		 2.00"
(50.8mm)		 1-9/16"
W10F10-B Plug/Male 1-1/4" 1-1/4" - 11-1/2 Female NPTF Brass 3.39"
(86.1mm)		 2.37"
(60.2mm)		 1-15/16"
W10BF10-B Plug/Male 1-1/4" 1-1/4" - 11 Female BSPP Brass 3.39"
(86.1mm)		 2.37"
(60.2mm)		 1-15/16"
W12F12-B Plug/Male 1-1/2" 1-1/2" - 11-1/2 Female NPTF Brass 3.74"
(95.0mm)		 2.73"
(69.3mm)		 2-1/4"
W12BF12-B Plug/Male 1-1/2" 1-1/2" - 11 Female BSPP Brass 3.74"
(95.0mm)		 2.73"
(69.3mm)		 2-1/4"
