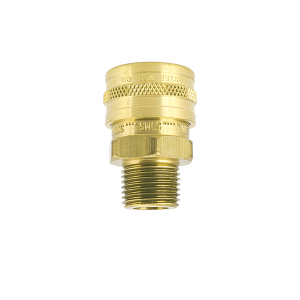

8STM8-SS Breco by Foster | FST Series | Straight Thru Socket | 1" Socket x 1" Male NPT Thread | Straight | 303 Stainless Steel

8STM8-SS Breco by Foster | FST Series | Straight Thru Socket | 1" Socket x 1" Male NPT Thread | Straight | 303 Stainless Steel

Save $121.45 Save $121.45
$303.63
$303.63 - $303.63
$303.63
$182.18
$182.18 - $182.18
$182.18

Foster Quick Disconnects - FST Series Straight Thru Socket - Breco
Specifications for Variant SKU: 8STM8-SS ZSi-Foster
Brand: Breco
Series: FST Series
Shape (Orientation): Straight
Material(s): 303 Stainless Steel
Interchange:
  • Straight-Thru Industrial Interchange.
  • Standard industrial interchange design, most widely used in industry. Within each series, only sockets and plugs of the same size will couple together.
Features:
  • Type: FST Straight-Thru, No valve in either socket or plug.
  • Operation: Manual - Socket sleeve must be manually retracted to connect and disconnect.
  • Options: Ball Lock (BL) - Locks socket against accidental disconnect. To connect, align ball with slot. After connection, rotate sleeve to lock. To disconnect, realign ball with slot and retract sleeve.
  • Seal Compound: Standard seals are Buna-N
  • Performance Data Flow: Couplers have same inside diameter as nominal pipe.
  • Rated Pressure: Rated pressures as defined by ANSI/B93.2-1986, based on 4:1 Safety Factor and non-shock service.
  • Vacuum Service: 27" Hg maximum
  • NOTE: Only Sockets & Plugs with same prefix digits connect together. Example: 25FS & 25MPB
Female CouplerPart Number Brand Male PlugPart Number MPT Size Description
12MS Foster 12MP 12MPB 12MPS 1/8" Brass
BL12MS Foster 1/8" Ball Lock, Brass
1STM1-B Breco ST1M1-B ST1M1-SS ST1M1-S 1/8" Brass
25MS Foster 25MP 25MPB 25MPS 1/4" Brass
BL25MS Foster 1/4" Ball Lock, Brass
25MS-101 Foster 1/4" Brass, w/Viton Seal
2STM2 Breco ST2M2-B ST2M2-SS ST2M2-S 1/4" Brass
ST2M2-S Breco 1/4" Steel
38MS Foster 38MP 38MPB 38MPS 3/8" Brass
38MS-101 Foster 3/8" Brass, w/Viton Seal
BL38MS Foster 3/8" Ball Lock, Brass
3STM3-B Breco ST3M3-B ST3M3-SS ST3M3-S 3/8" Brass
3STM3-SS Breco 3/8" 303 Stainless Steel
50MS Foster 50MP 50MPB 50MPS 1/2" Brass
50MS-101 Foster 1/2" Brass, w/Viton Seal
BL50MS Foster 1/2" Ball Lock, Brass
4STM4-B Breco ST4M4-B ST4M4-S ST4M4-SS 1/2" Brass
4STM4-SS Breco 1/2" 303 Stainless Steel
75MS Foster 75MP 75MPB 75MPS 3/4" Brass
BL75MS Foster 3/4" Ball Lock, Brass
6STM6-B Breco ST6M6-B ST6M6-SS ST6M6-S 3/4" Brass
6STM6-SS Breco 3/4" 303 Stainless Steel
100MS Foster 100MP 100MPB 100MPS 1" Brass
BL100MS Foster 1" Ball Lock, Brass
8STM8-B Breco ST8M8-B ST8M8-SS ST8M8-S 1" Brass
8STM8-SS Breco 1" 303 Stainless Steel
