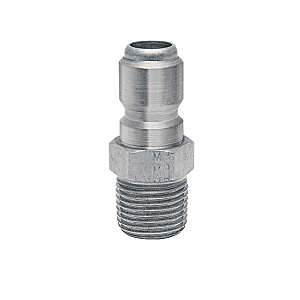

ST4M4-S Breco by Foster | FST Series | Straight-Thru Industrial Interchange | 1/2" Male NPT Thread | Steel

ST4M4-S Breco by Foster | FST Series | Straight-Thru Industrial Interchange | 1/2" Male NPT Thread | Steel

Save $0.37 Save $0.37
$3.30
$3.30 - $3.30
$3.30
$2.93
$2.93 - $2.93
$2.93

Foster Quick Disconnects - FST Series Straight Thru Plug - Breco
Specifications for Variant SKU: ST4M4-S ZSi-Foster
Brand: Breco
Series: ST Series
Shape (Orientation): Straight
Material(s): Steel
Interchange:
  • Straight-Thru Industrial Interchange.
  • Standard industrial interchange design, most widely used in industry. Within each series, only sockets and plugs of the same size will couple together.
Features:
  • Type: FST Straight-Thru, No valve in either socket or plug.
  • Operation: Manual - Socket sleeve must be manually retracted to connect and disconnect.
  • Options: Ball Lock (BL) - Locks socket against accidental disconnect. To connect, align ball with slot. After connection, rotate sleeve to lock. To disconnect, realign ball with slot and retract sleeve.
  • Seal Compound: Standard seals are Buna-N
  • Performance Data Flow: Couplers have same inside diameter as nominal pipe.
  • Rated Pressure: Rated pressures as defined by ANSI/B93.2-1986, based on 4:1 Safety Factor and non-shock service.
  • Vacuum Service: 27" Hg maximum
  • NOTE: Only Sockets & Plugs with same prefix digits connect together. Example: 25FS & 25MPB
Male Plug Part Number Brand Female Coupler Part Number MPT Size Description
12MP Foster 12MS 1/8" Steel
12MPB Foster 1/8" Brass
12MPS Foster 1/8" 303 Stainless Steel
ST1M1-B Breco 1STM1-B 1/8" Brass
ST1M1-SS Breco 1/8" 303 Stainless Steel
ST1M1-S Breco 1/8" Steel
25MP Foster 25MS 1/4" Steel
25MPB Foster 1/4" Brass
25MPS Foster 1/4" 303 Stainless Steel
ST2M2-B Breco 2STM2-B 2STM2-SS 1/4" Brass
ST2M2-SS Breco 1/4" 303 Stainless Steel
ST2M2-S Breco 1/4" Steel
38MP Foster 38MS 3/8" Steel
38MPB Foster 3/8" Brass
38MPS Foster 3/8" 303 Stainless Steel
ST3M3-B Breco 3STM3-B 3STM3-SS 3/8" Brass
ST3M3-SS Breco 3/8" 303 Stainless Steel
ST3M3-S Breco 3/8" Steel
50MP Foster 50MS 1/2" Steel
50MPB Foster 1/2" Brass
50MPS Foster 1/2" 303 Stainless Steel
ST4M4-B Breco 4STM4-B 4STM4-SS 1/2" Brass
ST4M4-SS Breco 1/2" 303 Stainless Steel
ST4M4-S Breco 1/2" Steel
75MP Foster 75MS 3/4" Steel
75MPB Foster 3/4" Brass
75MPS Foster 3/4" 303 Stainless Steel
ST6M6-B Breco 6STM6-B 6STM6-SS 3/4" Brass
ST6M6-SS Breco 3/4" 303 Stainless Steel
ST6M6-S Breco 3/4" Steel
100MP Foster 100MS 1" Steel
100MPB Foster 1" Brass
100MPS Foster 1" 303 Stainless Steel
ST8M8-B Breco 8STM8-B 8STM8-SS 1" Brass
ST8M8-SS Breco 1" 303 Stainless Steel
ST8M8-S Breco 1" Steel
125MP Foster - 1-1/4" Steel
125MPB Foster - 1-1/4" Brass
150MP Foster - 1-1/2" Steel
150MPB Foster - 1-1/2" Brass
