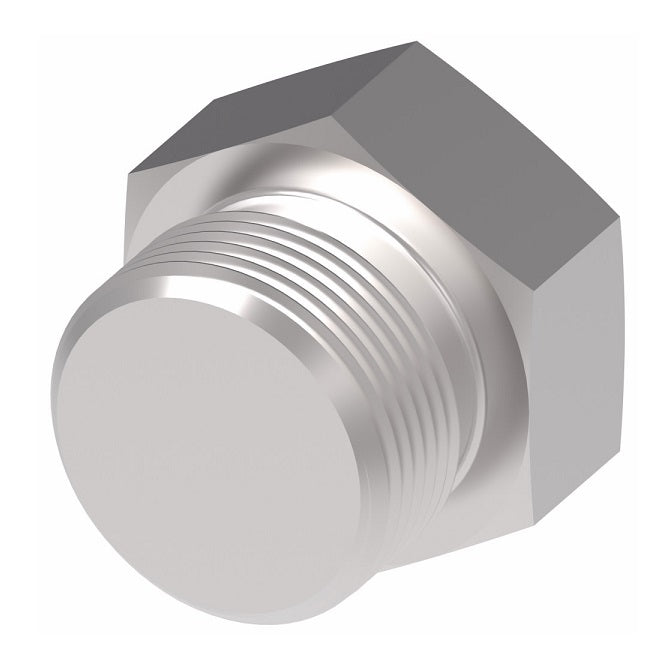

900598-1-4S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Plug Adapter (without O-Ring) | -04 Male SAE O-Ring Boss | Steel

900598-1-4S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Plug Adapter (without O-Ring) | -04 Male SAE O-Ring Boss | Steel

$1.89 - $1.89
$1.89
$1.89 - $1.89
$1.89

Aeroquip® by Danfoss
SAE O-Ring Boss (ORB) Plug Adapter

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 900598-1-4S Danfoss
Shape (Orientation): No Orientation
Ends Configuration: 1/4in Male O-Ring Boss
Material(s): Steel
Construction:
  • Buna-N O-Rings are standard.
Steel
with Buna-N O-Ring
Part Number 		Steel
with Viton O-Ring
Part Number 		Steel
without O-Ring
Part Number 		Thread T1 A Hex 1
900598-2S - - 5/16-24 0.60" 0.44"
900598-4S - 900598-1-4S 7/16-20 0.67" 0.56
900598-5S - 900598-1-5S 1/2-20 0.67" 0.62
900598-6S 213-900598-6 900598-1-6S 9/16-18 0.73" 0.69"
900598-8S - 900598-1-8S 3/4-16 0.80" 0.88"
900598-10S - 900598-1-10S 7/8-14 0.93" 1.00"
900598-12S - 900598-1-12S 1-1/16-12 1.09" 1.25"
900598-14S - - 1-3/16-12 1.09" 1.38"
900598-16S - 900598-1-16S 1-5/16-12 1.12" 1.50"
900598-20S - 900598-1-20S 1-5/8-12 1.20" 1.88"
900598-24S - - 1-7/8-12 1.27" 2.12"
900598-32S - 900598-1-32S 2-1/2-12 1.43" 2.75"
