900598-10S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Plug Adapter | -10 Male SAE O-Ring Boss | Steel

900598-10S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Plug Adapter | -10 Male SAE O-Ring Boss | Steel

Name: 900598-10S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Plug Adapter | -10 Male SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: 900598-10S Danfoss
Price: 2.54 USD
Availability: InStock

$2.54 - $2.54

$2.54

$2.54 - $2.54

$2.54

Aeroquip® by Danfoss

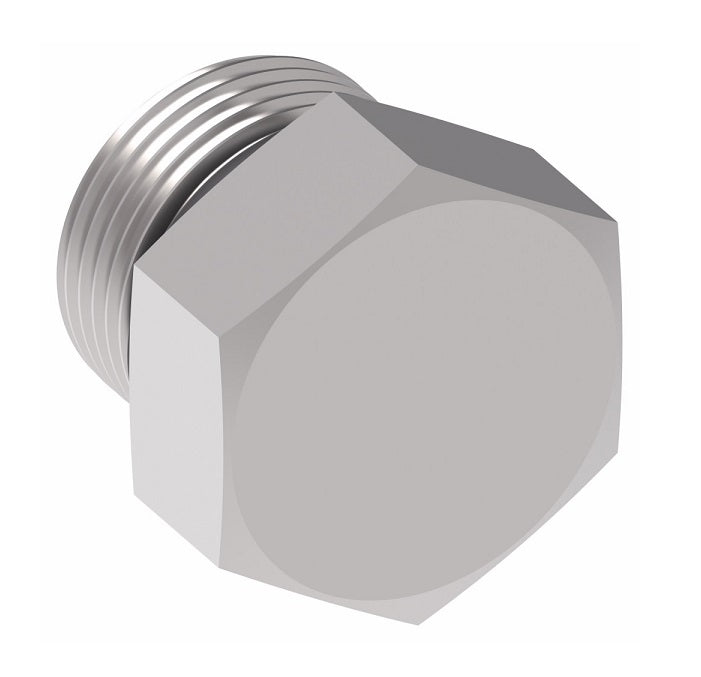

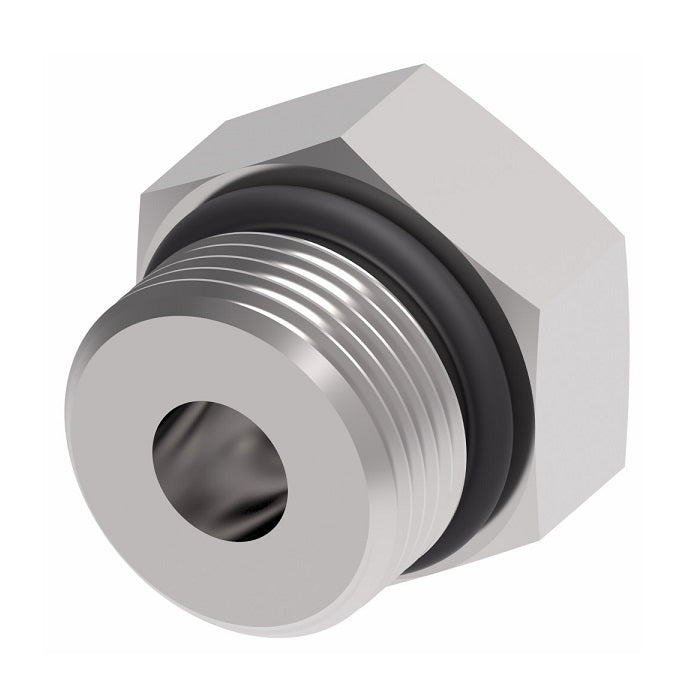

SAE O-Ring Boss (ORB) Plug Adapter

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 900598-10S Danfoss
Shape (Orientation):	No Orientation
Ends Configuration:	5/8in Male O-Ring Boss
Material(s):	Steel

Construction:
Buna-N O-Rings are standard.


Steel with Buna-N O-Ring Part Number	Steel with Viton O-Ring Part Number	Steel without O-Ring Part Number	Thread T1	A	Hex 1
900598-2S	-	-	5/16-24	0.60"	0.44"
900598-4S	-	900598-1-4S	7/16-20	0.67"	0.56
900598-5S	-	900598-1-5S	1/2-20	0.67"	0.62
900598-6S	213-900598-6	900598-1-6S	9/16-18	0.73"	0.69"
900598-8S	-	900598-1-8S	3/4-16	0.80"	0.88"
900598-10S	-	900598-1-10S	7/8-14	0.93"	1.00"
900598-12S	-	900598-1-12S	1-1/16-12	1.09"	1.25"
900598-14S	-	-	1-3/16-12	1.09"	1.38"
900598-16S	-	900598-1-16S	1-5/16-12	1.12"	1.50"
900598-20S	-	900598-1-20S	1-5/8-12	1.20"	1.88"
900598-24S	-	-	1-7/8-12	1.27"	2.12"
900598-32S	-	900598-1-32S	2-1/2-12	1.43"	2.75"
