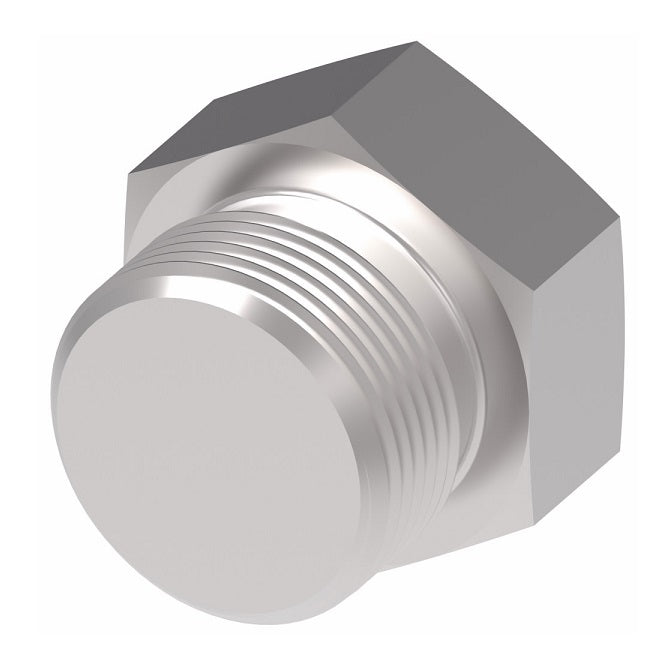

900598-1-8S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Plug Adapter (without O-Ring) | -08 Male SAE O-Ring Boss | Steel

900598-1-8S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Plug Adapter (without O-Ring) | -08 Male SAE O-Ring Boss | Steel

$4.40 - $4.40
$4.40
$4.40 - $4.40
$4.40

Aeroquip® by Danfoss
SAE O-Ring Boss (ORB) Plug Adapter

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 900598-1-8S Danfoss
Shape (Orientation): No Orientation
Ends Configuration: 1/2in Male O-Ring Boss
Material(s): Steel
Construction:
  • Buna-N O-Rings are standard.
Steel
with Buna-N O-Ring
Part Number 		Steel
with Viton O-Ring
Part Number 		Steel
without O-Ring
Part Number 		Thread T1 A Hex 1
900598-2S - - 5/16-24 0.60" 0.44"
900598-4S - 900598-1-4S 7/16-20 0.67" 0.56
900598-5S - 900598-1-5S 1/2-20 0.67" 0.62
900598-6S 213-900598-6 900598-1-6S 9/16-18 0.73" 0.69"
900598-8S - 900598-1-8S 3/4-16 0.80" 0.88"
900598-10S - 900598-1-10S 7/8-14 0.93" 1.00"
900598-12S - 900598-1-12S 1-1/16-12 1.09" 1.25"
900598-14S - - 1-3/16-12 1.09" 1.38"
900598-16S - 900598-1-16S 1-5/16-12 1.12" 1.50"
900598-20S - 900598-1-20S 1-5/8-12 1.20" 1.88"
900598-24S - - 1-7/8-12 1.27" 2.12"
900598-32S - 900598-1-32S 2-1/2-12 1.43" 2.75"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
