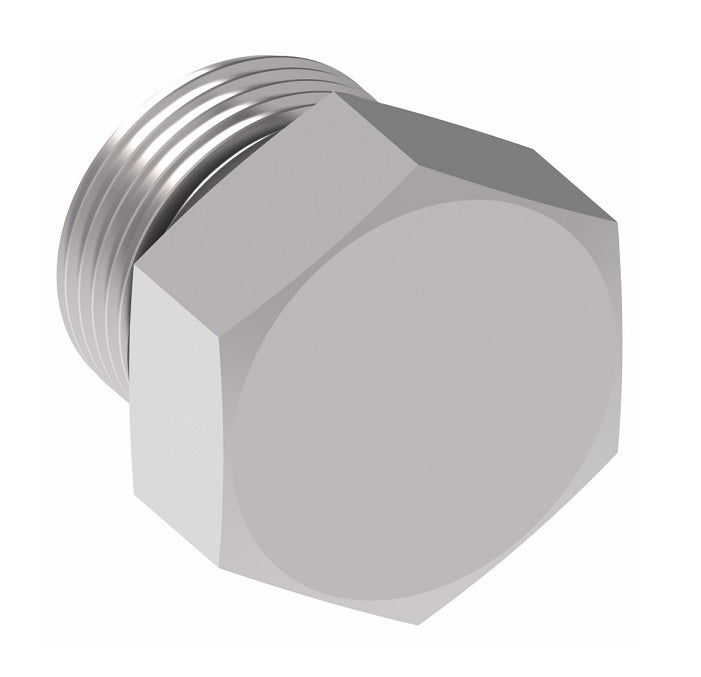

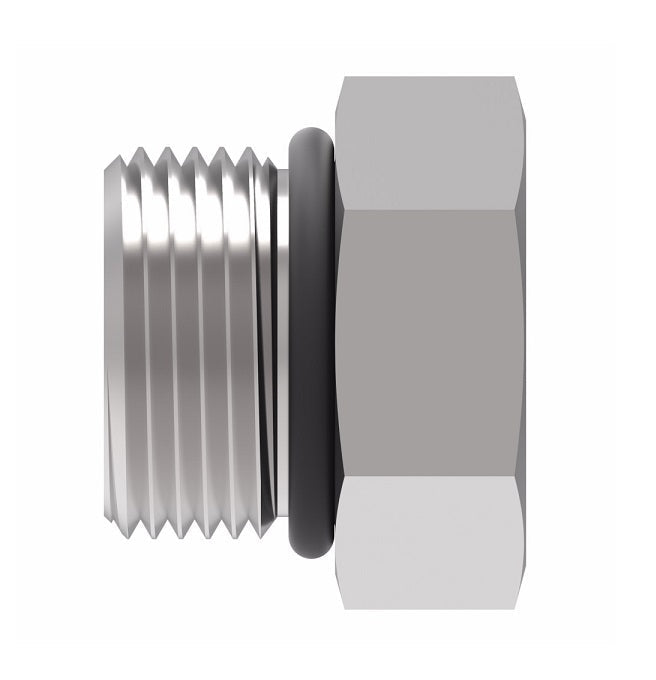

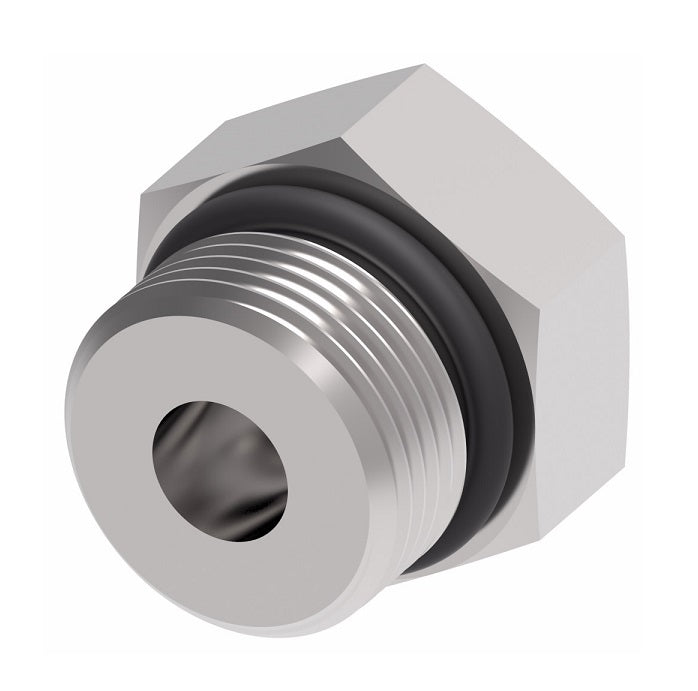

900598-12S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Plug Adapter | -12 Male SAE O-Ring Boss | Steel

900598-12S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Plug Adapter | -12 Male SAE O-Ring Boss | Steel

Name: 900598-12S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Plug Adapter | -12 Male SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: 900598-12S Danfoss
Price: 4.81 USD
Availability: InStock

$4.81 - $4.81

$4.81

$4.81 - $4.81

$4.81

Aeroquip® by Danfoss
SAE O-Ring Boss (ORB) Plug Adapter

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 900598-12S Danfoss
Shape (Orientation):	No Orientation
Ends Configuration:	3/4in Male O-Ring Boss
Material(s):	Steel

Construction:
Buna-N O-Rings are standard.


Steel with Buna-N O-Ring Part Number	Steel with Viton O-Ring Part Number	Steel without O-Ring Part Number	Thread T1	A	Hex 1
900598-2S	-	-	5/16-24	0.60"	0.44"
900598-4S	-	900598-1-4S	7/16-20	0.67"	0.56
900598-5S	-	900598-1-5S	1/2-20	0.67"	0.62
900598-6S	213-900598-6	900598-1-6S	9/16-18	0.73"	0.69"
900598-8S	-	900598-1-8S	3/4-16	0.80"	0.88"
900598-10S	-	900598-1-10S	7/8-14	0.93"	1.00"
900598-12S	-	900598-1-12S	1-1/16-12	1.09"	1.25"
900598-14S	-	-	1-3/16-12	1.09"	1.38"
900598-16S	-	900598-1-16S	1-5/16-12	1.12"	1.50"
900598-20S	-	900598-1-20S	1-5/8-12	1.20"	1.88"
900598-24S	-	-	1-7/8-12	1.27"	2.12"
900598-32S	-	900598-1-32S	2-1/2-12	1.43"	2.75"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
