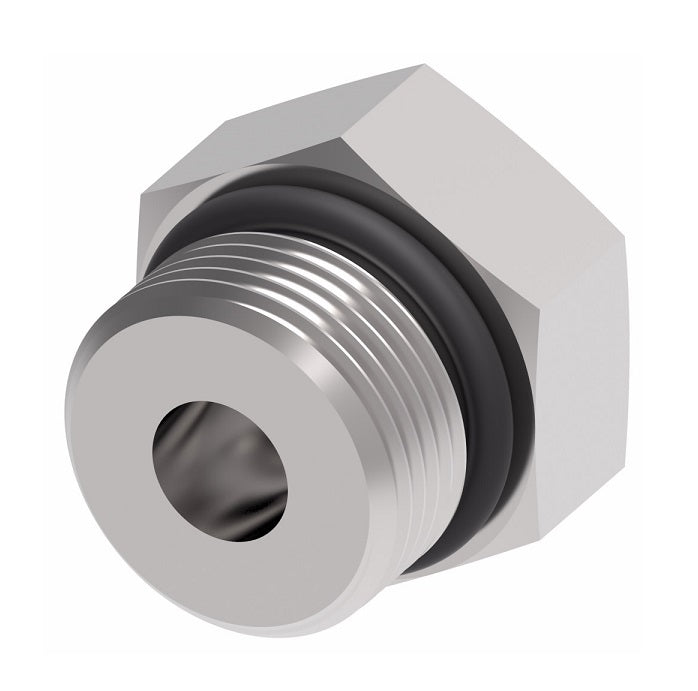

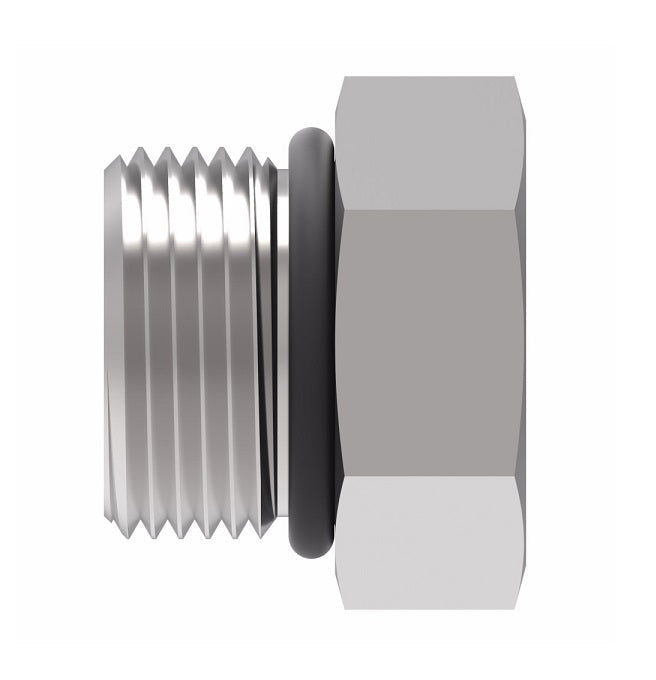

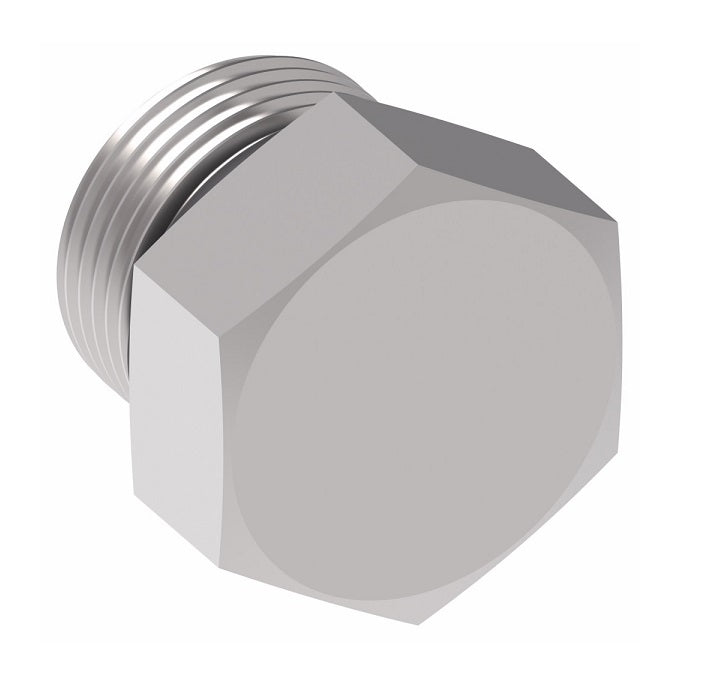

900598-8S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Plug Adapter | -08 Male SAE O-Ring Boss | Steel

900598-8S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Plug Adapter | -08 Male SAE O-Ring Boss | Steel

Name: 900598-8S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Plug Adapter | -08 Male SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: 900598-8S Danfoss
Price: 2.52 USD
Availability: InStock

$2.52 - $2.52

$2.52

$2.52 - $2.52

$2.52

Aeroquip® by Danfoss
SAE O-Ring Boss (ORB) Plug Adapter

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 900598-8S Danfoss
Shape (Orientation):	No Orientation
Ends Configuration:	1/2in Male O-Ring Boss
Material(s):	Steel

Construction:
Buna-N O-Rings are standard.


Steel with Buna-N O-Ring Part Number	Steel with Viton O-Ring Part Number	Steel without O-Ring Part Number	Thread T1	A	Hex 1
900598-2S	-	-	5/16-24	0.60"	0.44"
900598-4S	-	900598-1-4S	7/16-20	0.67"	0.56
900598-5S	-	900598-1-5S	1/2-20	0.67"	0.62
900598-6S	213-900598-6	900598-1-6S	9/16-18	0.73"	0.69"
900598-8S	-	900598-1-8S	3/4-16	0.80"	0.88"
900598-10S	-	900598-1-10S	7/8-14	0.93"	1.00"
900598-12S	-	900598-1-12S	1-1/16-12	1.09"	1.25"
900598-14S	-	-	1-3/16-12	1.09"	1.38"
900598-16S	-	900598-1-16S	1-5/16-12	1.12"	1.50"
900598-20S	-	900598-1-20S	1-5/8-12	1.20"	1.88"
900598-24S	-	-	1-7/8-12	1.27"	2.12"
900598-32S	-	900598-1-32S	2-1/2-12	1.43"	2.75"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
