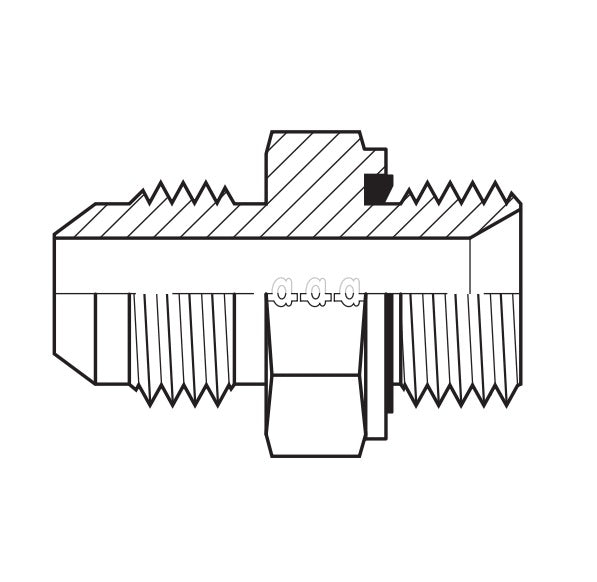

9005ES-10-12 by AdaptAll | Hydraulic Adapter | -10 Male JIC x -12 Male BSPP | with Elastomeric Seal | Steel

9005ES-10-12 by AdaptAll | Hydraulic Adapter | -10 Male JIC x -12 Male BSPP | with Elastomeric Seal | Steel

Save $5.71 Save $5.71
$14.27
$14.27 - $14.27
$14.27
$8.56
$8.56 - $8.56
$8.56

Adaptall
Hydraulic Hose Adapter | Male JIC x Male BSPP with Elastomeric Seal | Steel
Specifications for Variant SKU: 9005ES-10-12 Adaptall
Series: 9005ES
Shape (Orientation): Straight
Ends Configuration: 5/8in Male JIC, 3/4in Male BSPP
Material(s): Steel
Applicable Specs & Approvals: SAE J514, ISO 8434-2, ISO 1179, ISO 8434-6, BS 5200
Relevant Standards:
  • SAE J514 / ISO 8434-2
  • ISO 1179 /ISO 8434-6 /BS 5200
Part Number F1 (JIC)
Size		 F1 (JIC)
Thread		 F2 (BSPP)
Size		 F2 (BSPP)
Thread		 CH Hex
Size		 L L1 L2 B Bore
(Minimum)
9005ES-04-02 1/4" 7/16-20 1/8" 1/8-28 19mm 30.0mm 14.0mm 8.0mm 4.5mm
9005ES-04-04 1/4" 7/16-20 1/4" 1/4-19 19mm 35.0mm 14.0mm 11.5mm 4.5mm
9005ES-04-06 1/4" 7/16-20 3/8" 3/8-19 22mm 36.0mm 14.0mm 12.0mm 4.5mm
9005ES-04-08 1/4" 7/16-20 1/2" 1/2-14 27mm 39.0mm 14.0mm 14.0mm 4.5mm
9005ES-05-04 5/16" 1/2-20 1/4" 1/4-19 19mm 35.5mm 14.0mm 12.0mm 6.0mm
9005ES-06-02 3/8" 9/16-18 1/8" 1/8-28 17mm 30.0mm 14.0mm 8.0mm 4.0mm
9005ES-06-04 3/8" 9/16-18 1/4" 1/4-19 19mm 35.0mm 14.0mm 12.0mm 6.0mm
9005ES-06-06 3/8" 9/16-18 3/8" 3/8-19 22mm 35.0mm 14.0mm 12.0mm 7.5mm
9005ES-06-08 3/8" 9/16-18 1/2" 1/2-14 27mm 40.0mm 14.0mm 12.0mm 7.5mm
9005ES-06-12 3/8" 9/16-18 3/4" 3/4-14 32mm 45.0mm 14.0mm 15.5mm 7.5mm
9005ES-08-04 1/2" 3/4-16 1/4" 1/4-19 19mm 39.0mm 16.5mm 12.0mm 5.0mm
9005ES-08-06 1/2" 3/4-16 3/8" 3/8-19 22mm 40.0mm 16.5mm 12.0mm 8.0mm
9005ES-08-08 1/2" 3/4-16 1/2" 1/2-14 27mm 42.0mm 16.5mm 14.0mm 10.0mm
9005ES-08-10 1/2" 3/4-16 5/8" 5/8-14 30mm 43.0mm 16.5mm 14.0mm 10.0mm
9005ES-08-12 1/2" 3/4-16 3/4" 3/4-14 32mm 45.5mm 16.5mm 16.0mm 10.0mm
9005ES-08-16 1/2" 3/4-16 1" 1-11 41mm 48.0mm 16.5mm 18.0mm 10.0mm
9005ES-10-08 5/8" 7/8-14 1/2" 1/2-14 27mm 45.5mm 19.0mm 14.0mm 12.0mm
9005ES-10-10 5/8" 7/8-14 5/8" 5/8-14 30mm 45.5mm 19.0mm 14.0mm 12.0mm
9005ES-10-12 5/8" 7/8-14 3/4" 3/4-14 32mm 50.0mm 19.0mm 16.0mm 12.0mm
9005ES-12-08 3/4" 1-1/16-12 1/2" 1/2-14 27mm 49.0mm 22.0mm 13.5mm 12.0mm
9005ES-12-10 3/4" 1-1/16-12 5/8" 5/8-14 30mm 50.0mm 22.0mm 13.5mm 13.5mm
9005ES-12-12 3/4" 1-1/16-12 3/4" 3/4-14 32mm 51.0mm 22.0mm 16.0mm 13.5mm
9005ES-12-16 3/4" 1-1/16-12 1" 1-11 41mm 54.0mm 22.0mm 18.0mm 13.5mm
9005ES-12-20 3/4" 1-1/16-12 1-1/4" 1-1/4-11 50mm 55.0mm 22.0mm 20.0mm 13.5mm
9005ES-16-12 1" 1-5/16-12 3/4" 3/4-14 35mm 53.0mm 23.0mm 16.0mm 17.0mm
9005ES-16-16 1" 1-5/16-12 1" 1-11 41mm 54.5mm 23.0mm 17.5mm 20.0mm
9005ES-16-20 1" 1-5/16-12 1-1/4" 1-1/4-11 50mm 57.5mm 23.0mm 19.5mm 21.5mm
9005ES-16-24 1" 1-5/16-12 1-1/2" 1-1/2-11 55mm 62.0mm 23.0mm 22.5mm 21.5mm
9005ES-20-16 1-1/4" 1-5/8-12 1" 1-11 47mm 58.5mm 24.5mm 18.0mm 23.0mm
9005ES-20-20 1-1/4" 1-5/8-12 1-1/4" 1-1/4-11 50mm 59.5mm 24.5mm 19.5mm 25.0mm
9005ES-20-24 1-1/4" 1-5/8-12 1-1/2" 1-1/2-11 55mm 63.0mm 24.5mm 21.5mm 27.5mm
9005ES-24-20 1-1/2" 1-7/8-12 1-1/4" 1-1/4-11 50mm 61.0mm 27.5mm 19.5mm 30.0mm
9005ES-24-24 1-1/2" 1-7/8-12 1-1/2" 1-1/2-11 55mm 65.0mm 27.5mm 22.0mm 32.5mm
9005ES-32-32 2" 2 1/2-12 2" 2-11 77mm 74.0mm 34.5mm 21.0mm 45.0mm
Adaptall

Adaptall

Adaptall specializes in the conversion of hydraulic adapters and fittings, between International (“Metric”) and American (“Imperial”) thread types. These include British (BSPP, & BSPT), JIS, Kobelco, Komatsu, and Metric on the International side, as well as JIC, NPT, ORFS, and SAE ORB for Imperial thread types. Industries served include construction, mining / aggregates, pulp & paper, agriculture, manufacturing, industrial, marine, aerospace, military, OEM and more.
