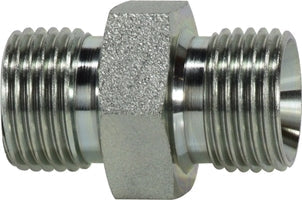

9022-04-02 by Midland | Hydraulic BSPP Hex Nipple | 1/4" Male BSPP x 1/8" Male BSPP | Straight | Steel

9022-04-02 by Midland | Hydraulic BSPP Hex Nipple | 1/4" Male BSPP x 1/8" Male BSPP | Straight | Steel

Save $1.52 Save $1.52
$2.57
$2.57 - $2.57
$2.57
$1.05
$1.05 - $1.05
$1.05

Midland Industries
Hydraulic Adapters: BSPP Hex Nipple - Steel
Specifications for Variant SKU: 9022-04-02 Midland
Ends Configuration: 1/4in Male BSPP, 1/8in Male BSPP
Material(s): Steel
Technical Info:
Crossover Series:
3420 MB 9022
Part Number Male BSPP
(1)		 Male BSPP Thread
(1)		 Male BSPP
(2)		 Male BSPP Thread
(2)
742022
(7420-2-2) 		1/8" 1/8-28 1/8" 1/8-28
9022-04-02 1/4" 1/4-19 1/8" 1/8-28
9022-04-04 1/4" 1/4-19 1/4" 1/4-19
9022-06-04 3/8" 3/8-19 1/4" 1/4-19
9022-06-06 3/8" 3/8-19 3/8" 3/8-19
9022-08-04 1/2" 1/2-14 1/4" 1/4-19
9022-08-06 1/2" 1/2-14 3/8" 3/8-19
742088
(7420-8-8) 		1/2" 1/2-14 1/2" 1/2-14
9022-10-04 5/8" 5/8-14 1/4" 1/4-19
9022-10-08 5/8" 5/8-14 1/2" 1/2-14
9022-10-10 5/8" 5/8-14 5/8" 5/8-14
9022-12-04 3/4" 3/4-14 1/4" 1/4-19
9022-12-06 3/4" 3/4-14 3/8" 3/8-19
9022-12-08 3/4" 3/4-14 1/2" 1/2-14
9022-12-10 3/4" 3/4-14 5/8" 5/8-14
9022-12-12 3/4" 3/4-14 3/4" 3/4-14
9022-16-04 1" 1-11 1/4" 1/4-19
9022-16-06 1" 1-11 3/8" 3/8-19
9022-16-08 1" 1-11 1/2" 1/2-14
9022-16-10 1" 1-11 5/8" 5/8-14
9022-16-12 1" 1-11 3/4" 3/4-14
9022-16-16 1" 1-11 1" 1-11
9022-20-12 1-1/4" 1-1/4-11 3/4" 3/4-14
9022-20-16 1-1/4" 1-1/4-11 1" 1-11
9022-20-20 1-1/4" 1-1/4-11 1-1/4" 1-1/4-11
9022-24-16 1-1/2" 1-1/2-11 1" 1-11
9022-24-20 1-1/2" 1-1/2-11 1-1/4" 1-1/4-11
9022-24-24 1-1/2" 1-1/2-11 1-1/2" 1-1/2-11
9022-32-24 2" 2-11 1-1/2" 1-1/2-11
9022-32-32 2" 2-11 2" 2-11

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
