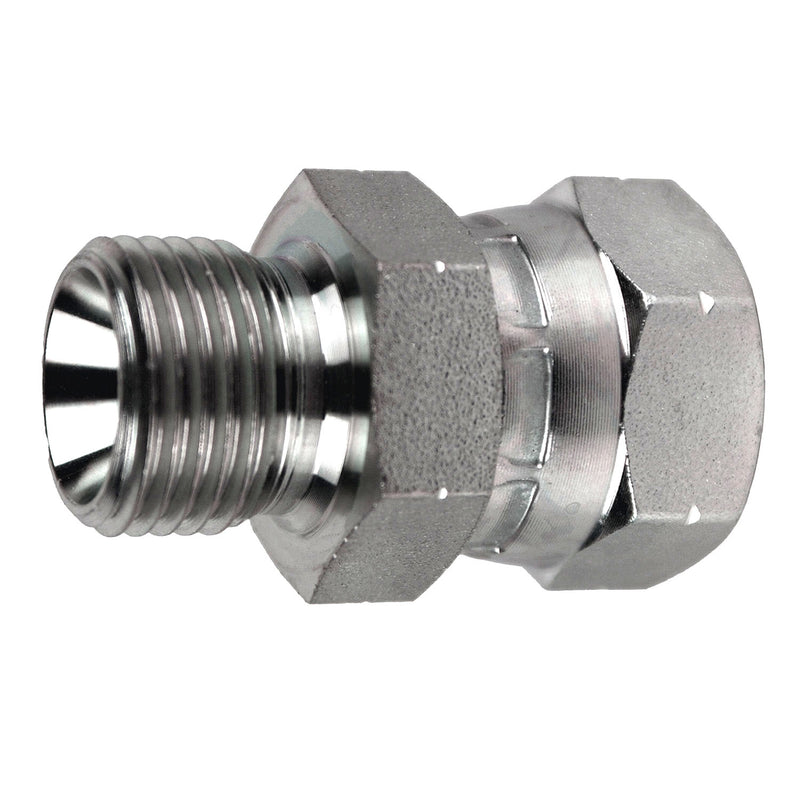

9024-02-04 by Midland | Hydraulic Adapter | 1/8" Male BSPP x 1/4" Female BSPP Swivel | Steel

9024-02-04 by Midland | Hydraulic Adapter | 1/8" Male BSPP x 1/4" Female BSPP Swivel | Steel

Save $1.27 Save $1.27
$3.17
$3.17 - $3.17
$3.17
$1.90
$1.90 - $1.90
$1.90

Midland Industries
Hydraulic Adapters: Male BSPP x Female BSPP Swivel - Steel

Inventory @ Manufacturers Warehouse: 102 Units
Specifications for Variant SKU: 9024-02-04 Midland
Ends Configuration: 1/8in Male BSPP, 1/4in Female BSPP
Material(s): Steel
Special Properties: Swivel
Technical Info:
Part Number Male BSPP Male BSPP
Thread		 Female BSPP Swivel Female BSPP Swivel
Thread
9024-02-04 1/8" 1/8-28 1/4" 1/4-19
9024-02-06 1/8" 1/8-28 3/8" 3/8-19
9024-04-02 1/4" 1/4-19 1/8" 1/8-28
9024-04-04 1/4" 1/4-19 1/4" 1/4-19
9024-04-06 1/4" 1/4-19 3/8" 3/8-19
9024-04-08 1/4" 1/4-19 1/2" 1/2-14
9024-04-12 1/4" 1/4-19 3/4" 3/4-14
9024-06-02 1/4" 1/4-19 1/2" 1/2-14
9024-06-04 3/8" 3/8-19 1/4" 1/4-19
9024-06-06 3/8" 3/8-19 3/8" 3/8-19
9024-06-08 3/8" 3/8-19 1/2" 1/2-14
9024-06-12 3/8" 3/8-19 3/4" 3/4-14
9024-08-04 1/2" 1/2-14 1/4" 1/4-19
9024-08-06 1/2" 1/2-14 3/8" 3/8-19
9024-08-08 1/2" 1/2-14 1/2" 1/2-14
9024-08-10 1/2" 1/2-14 5/8" 5/8-14
9024-08-12 1/2" 1/2-14 3/4" 3/4-14
9024-12-04 3/4" 3/4-14 1/4" 1/4-19
9024-10-08 5/8" 5/8-14 1/2" 1/2-14
9024-10-10 5/8" 5/8-14 5/8" 5/8-14
9024-10-12 5/8" 5/8-14 3/4" 3/4-14
9024-12-06 3/4" 3/4-14 3/8" 3/8-19
9024-12-08 3/4" 3/4-14 1/2" 1/2-14
9024-12-10 3/4" 3/4-14 5/8" 5/8-14
9024-12-12 3/4" 3/4-14 3/4" 3/4-14
9024-12-16 3/4" 3/4-14 1" 1-11
9024-16-08 1" 1-11 1/2" 1/2-14
9024-16-10 1" 1-11 5/8" 5/8-14
9024-16-12 1" 1-11 3/4" 3/4-14
9024-16-16 1" 1-11 1" 1-11
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
