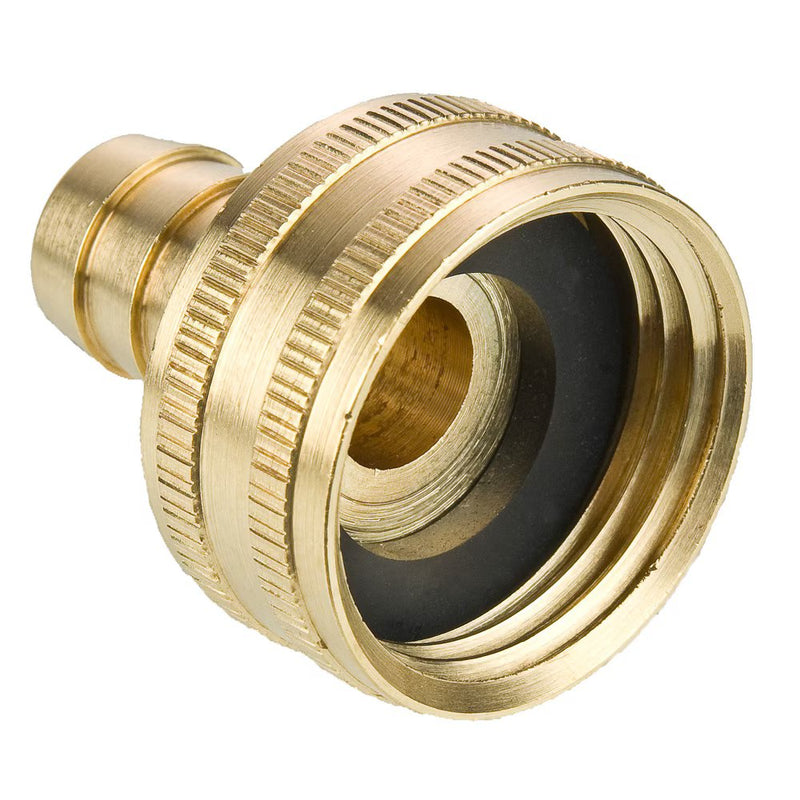

90GH-12-6 by Parker | Garden Hose Fittings | 3/4" Female Swivel Hose Thread x 3/8" Hose Barb | 1.21" Length | Straight | Brass | Pack of 10

Save $19.41

$137.41

$137.41 - $137.41

$137.41

$118.00

$118.00 - $118.00

$118.00

by Parker Hannifin
Garden Hose Fittings:Swivel Connector Female Garden Hose to Hose Barb 90GH

Package Quantity: 10 Units

Specifications for Variant SKU: 90GH-12-6 Parker \| 10 \|
Series:	90GH Series
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Rubber
Special Properties:	Swivel

Specification:
Product Features:	All brass construction 3/4” garden hose thread Rubber washer Flare, hose barb and pipe end configurations High Flow couplings
Markets:	Industrial Mobile Factory/process automation
Applications:	Water Line
Temperature Range:	+35° to +100° F at 75 PSI (+1.6° to +37.7° C at 5.1 bar)
Pressure Range:	Up to 150 PSI (10.3 bar)
Compatible Tubing:	Garden Hose


Part Number	Hose Thread	ID Hose Thread	L	M	Flow Diameter (D)
90GH-12-3	3/4"	3/16"	1.29"	1.15"	.125"
90GH-12-4	3/4"	1/4"	1.21"	1.15"	.187"
90GH-12-6	3/4"	3/8"	1.21"	1.15"	.281"
90GH-12-8	3/4"	1/2"	1.21"	1.15"	.375"
90GH-12-10*	3/4"	5/8"	1.93"	1.19"	.500"
90GH-12-12*	3/4"	3/4"	1.93"	1.19"	.625"

*Denotes hex body
