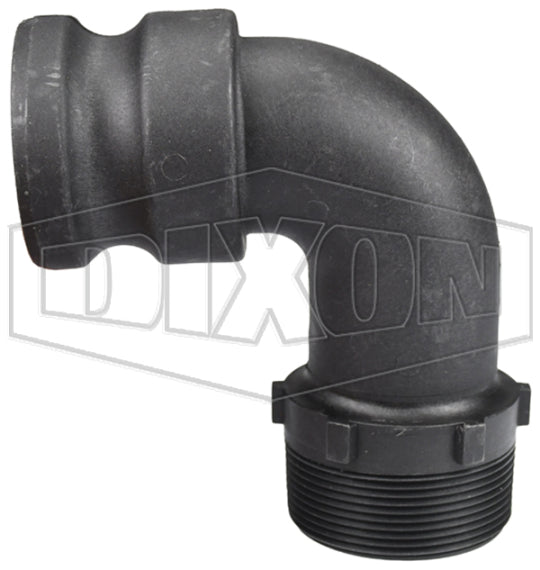

90PPF200 by Dixon Valve | Cam & Groove Adapter | 90° Elbow | Type F | 2" Adapter x 2" Male NPT | Polypropylene

Save $4.32

$13.41

$13.41 - $13.41

$13.41

$9.09

$9.09 - $9.09

$9.09

Dixon Valve
Cam & Groove | Type F | 90° Elbow | Adapter x Male NPT

Designed for use with liquids.

Quantity

Specifications for Variant SKU: 90PPF200 Dixon
Shape (Orientation):	90 Degree
Cam Type:	Type F
Ends Configuration:	2in Male Cam & Groove, 2in Male NPT
Material(s):	Polypropylene

Construction:
Manufactured from glass-filled polypropylene.
Specifications:
Maximum operating pressure: 100 PSI (1-1/2" - 2"); recommendations based on the use of mating Dixon fittings at an ambient temperature of 70°F (21°C) with standard seal installed.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Notes:
NOT recommended for use with PTFE gaskets, polypropylene cam & groove should not be mixed with metal fittings. Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.

Glass-Filled PolypropylenePart Number	Size	Max. Operating Pressure
90PPF150	1-1/2"	100 PSI
90PPF200	2"	100 PSI
