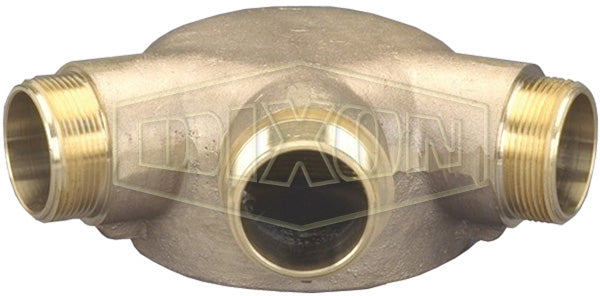

90FR3C6025F Dixon Cast Brass 90 deg. Three Way Male Outlet - Roof Connection - Bottom Outlet - 6" Female Pipe Inlet x Three 2-1/2" Male NST(NH) Outlets

90FR3C6025F Dixon Cast Brass 90 deg. Three Way Male Outlet - Roof Connection - Bottom Outlet - 6" Female Pipe Inlet x Three 2-1/2" Male NST(NH) Outlets

Save $683.23 Save $683.23
$1,708.08
$1,708.08 - $1,708.08
$1,708.08
$1,024.85
$1,024.85 - $1,024.85
$1,024.85

Dixon Fire Fittings
Three Way Male Outlet - Roof Connection

Used to create roof connections, or fire pump test connections.
Specifications for Variant SKU: 90FR3C6025F Dixon
Shape (Orientation): Multi-Directional
Ends Configuration: 6in Female NPT, 2-1/2in Male NST, 2-1/2in Male NST, 2-1/2in Male NST, Some Ends Match
Material(s): Brass
Features:
  • Provides 250 GPM minimum per outlet.
  • Material: Cast Brass.
Back Outlet
Part Number Inlet (Three) Outlets Dimensions Weight
(Lbs.)
A B C
FR3C4025 4" Female Pipe 2-1/2" Male NPT 12-3/4" 8-3/4" 5-1/4" 12.0000
FR3C6025 6" Female Pipe 2-1/2" Male NPT 15-3/8" 9-3/4" 7-5/8" 24.0000
FR3C6025F 6" Female Pipe 2-1/2" Male NST(NH) 15-3/8" 9-3/4" 7-5/8" 24.0000
Bottom Outlet
Part Number Inlet (Three) Outlets Dimensions Weight
(Lbs.)
A B C D
90FR3C4025 4" Female Pipe 2-1/2" Male NPT 7-3/4" 11-3/4" 4-7/16" 6-1/4" 23.2500
90FR3C4025F 4" Female Pipe 2-1/2" Male NST(NH) 7-3/4" 11-3/4" 4-7/16" 6-1/4" 23.2500
90FR3C6025 6" Female Pipe 2-1/2" Male NPT 7-3/4" 11-3/4" 4-7/16" 6-1/4" 16.2500
90FR3C6025F 6" Female Pipe 2-1/2" Male NST(NH) 7-3/4" 11-3/4" 4-7/16" 6-1/4" 16.2500
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
