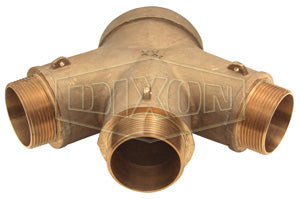

FR3C4025 Dixon Cast Brass Straight Three Way Male Outlet - Roof Connection - Back Outlet - 4" Female Pipe Inlet x Three 2-1/2" Male NPT Outlets

FR3C4025 Dixon Cast Brass Straight Three Way Male Outlet - Roof Connection - Back Outlet - 4" Female Pipe Inlet x Three 2-1/2" Male NPT Outlets

Save $467.79 Save $467.79
$1,169.48
$1,169.48 - $1,169.48
$1,169.48
$701.69
$701.69 - $701.69
$701.69

Dixon Fire Fittings
Three Way Male Outlet - Roof Connection

Used to create roof connections, or fire pump test connections.
Specifications for Variant SKU: FR3C4025 Dixon
Shape (Orientation): Multi-Directional
Ends Configuration: 4in Female NPT, 2-1/2in Male NPT, 2-1/2in Male NPT, 2-1/2in Male NPT, Some Ends Match
Material(s): Brass
Features:
  • Provides 250 GPM minimum per outlet.
  • Material: Cast Brass.
Back Outlet
Part Number Inlet (Three) Outlets Dimensions Weight
(Lbs.)
A B C
FR3C4025 4" Female Pipe 2-1/2" Male NPT 12-3/4" 8-3/4" 5-1/4" 12.0000
FR3C6025 6" Female Pipe 2-1/2" Male NPT 15-3/8" 9-3/4" 7-5/8" 24.0000
FR3C6025F 6" Female Pipe 2-1/2" Male NST(NH) 15-3/8" 9-3/4" 7-5/8" 24.0000
Bottom Outlet
Part Number Inlet (Three) Outlets Dimensions Weight
(Lbs.)
A B C D
90FR3C4025 4" Female Pipe 2-1/2" Male NPT 7-3/4" 11-3/4" 4-7/16" 6-1/4" 23.2500
90FR3C4025F 4" Female Pipe 2-1/2" Male NST(NH) 7-3/4" 11-3/4" 4-7/16" 6-1/4" 23.2500
90FR3C6025 6" Female Pipe 2-1/2" Male NPT 7-3/4" 11-3/4" 4-7/16" 6-1/4" 16.2500
90FR3C6025F 6" Female Pipe 2-1/2" Male NST(NH) 7-3/4" 11-3/4" 4-7/16" 6-1/4" 16.2500
