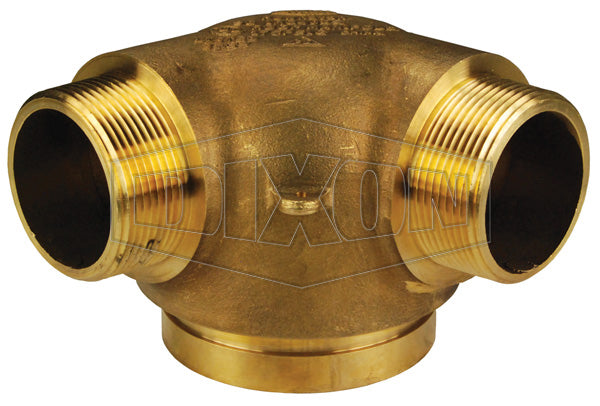

90IRC4025 Dixon Cast Brass 90 deg. Two Way Male Outlet - Roof Connection - Bottom Outlet - 4" Pipe Inlet x Two 2-1/2" Male NPT Outlets (Global)

90IRC4025 Dixon Cast Brass 90 deg. Two Way Male Outlet - Roof Connection - Bottom Outlet - 4" Pipe Inlet x Two 2-1/2" Male NPT Outlets (Global)

Save $27.50 Save $27.50
$247.46
$247.46 - $247.46
$247.46
$219.96
$219.96 - $219.96
$219.96

Dixon Fire Fittings
Roof Connections - Bottom Outlet - Cast Brass

Used to create roof connections, fire pump test connections, wall hydrants or sidewalk (free standing) hydrants.
Specifications for Variant SKU: 90IRC4025 Dixon
Shape (Orientation): Y
Ends Configuration: 4in Female NPT, 2-1/2in Male NPT, 2-1/2in Male NPT, Some Ends Match
Material(s): Brass
Features:
  • Provides 250 GPM minimum per outlet.
  • UL listed.
  • Maximum operating pressure: 175 PSI at 70°F (21°C).
Size A B C D
4" x 2-1/2" x 2-1/2" 7-1/2" 6-3/4" 5-1/8" 4-1/2"
6" x 2-1/2" x 2-1/2" 9" 8-1/2" 7-1/2" 5"
Part Number Inlet (2) Outlets Weight
(Lbs.)
90IRC4025* 4" Pipe 2-1/2" Male NPT 6.0000
90FRC4025 4" Pipe 2-1/2" Male NPT 6.1800
90IRC4025F* 4" Pipe 2-1/2" Male NST(NH) 6.0000
90FRC4025F 4" Pipe 2-1/2" Male NST(NH) 10.3000
90FRC6025 6" Pipe 2-1/2" Male NPT 18.2400
90FRC6025F 6" Pipe 2-1/2" Male NST(NH) 18.2200
90IRC4025G* 4" Groove 2-1/2" Male NPT 7.0500
90IRC4025GF* 4" Groove 2-1/2" Male NST(NH) 7.0500

* Parts are Imported, all others made in the USA
