9197-16-L22-30 Adaptall Carbon Steel -16 Braze Male JIC x L22 Metric Female DIN/DKO (Swivel)

9197-16-L22-30 by AdaptAll | -16 Braze Male JIC x L22 Metric Female DIN/DKO Swivel | Carbon Steel

Save $16.35 Save $16.35
$40.87
$40.87 - $40.87
$40.87
$24.52
$24.52 - $24.52
$24.52

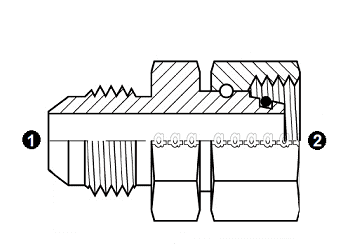

Adaptall Braze Male JIC x Metric Female DIN/DKO (Swivel) - Carbon Steel
Specifications for Variant SKU: 9197-16-L22-30 Adaptall
Series: 9197 Series
Shape (Orientation): Straight
Ends Configuration: 1in Male JIC, L22 Female DIN
Material(s): Carbon Steel
Features
  • Relevant Standard(s):
    • Side 1: SAE J514 / ISO 8434-2
    • Side 2: ISO 8434-1 / DIN 2353
Part Number Side 1 Side 2 Dimensions Weight
Dash
Size		 Type Gender Size Thread Dash
Size		 Type Gender Size Thread L1
(Length)		 CH1
(Width)		 CH2
(Width)		 lbs.
9197-04-L06-12 -04 JIC Male 1/4" 7/16 - 20 UNF L06 DIN TUBE Female L06 M12 X 1.5 39.7mm 14mm 14mm 0.07 lbs
9197-04-S06-14 -04 JIC Male 1/4" 7/16 - 20 UNF S06 DIN TUBE Female S06 M14 X 1.5 43.4mm 14mm 17mm 0.08 lbs
9197-06-L08-14 -06 JIC Male 3/8" 9/16 - 18 UNF L08 DIN TUBE Female L08 M14 X 1.5 40.8mm 17mm 17mm 0.11 lbs
9197-06-L10-16 -06 JIC Male 3/8" 9/16 - 18 UNF L10 DIN TUBE Female L10 M16 X 1.5 42.8mm 17mm 19mm 0.12 lbs
9197-06-S08-16 -06 JIC Male 3/8" 9/16 - 18 UNF S08 DIN TUBE Female S08 M16 X 1.5 44.1mm 17mm 19mm 0.12 lbs
9197-06-S10-18 -06 JIC Male 3/8" 9/16 - 18 UNF S10 DIN TUBE Female S10 M18 X 1.5 45.1mm 17mm 22mm 0.16 lbs
9197-08-L12-18 -08 JIC Male 1/2" 3/4 - 16 UNF L12 DIN TUBE Female L12 M18 X 1.5 45.3mm 19mm 22mm 0.18 lbs
9197-08-S12-20 -08 JIC Male 1/2" 3/4 - 16 UNF S12 DIN TUBE Female S12 M20 X 1.5 47.9mm 19mm 24mm 0.2 lbs
9197-10-L15-22 -10 JIC Male 5/8" 7/8 - 14 UNF L15 DIN TUBE Female L15 M22 X 1.5 52mm 24mm 27mm 0.29 lbs
9197-10-S16-24 -10 JIC Male 5/8" 7/8 - 14 UNF S16 DIN TUBE Female S16 M24 X 1.5 52.1mm 24mm 30mm 0.36 lbs
9197-12-L18-26 -12 JIC Male 3/4" 1-1/16 - 12 UNF L18 DIN TUBE Female L18 M26 X 1.5 56.5mm 27mm 32mm 0.43 lbs
9197-12-S20-30 -12 JIC Male 3/4" 1-1/16 - 12 UNF S20 DIN TUBE Female S20 M30 X 2.0 64.1mm 27mm 36mm 0.58 lbs
9197-16-L22-30 -16 JIC Male 1" 1-5/16 - 12 UN L22 DIN TUBE Female L22 M30 X 2.0 56.5mm 36mm 36mm 0.62 lbs
9197-16-L28-36 -16 JIC Male 1" 1-5/16 - 12 UN L28 DIN TUBE Female L28 M36 X 2.0 60.7mm 36mm 41mm 0.64 lbs
9197-16-S25-36 -16 JIC Male 1" 1-5/16 - 12 UN S25 DIN TUBE Female S25 M36 X 2.0 67.9mm 36mm 46mm 0.98 lbs
9197-20-L35-45 -20 JIC Male 1-1/4" 1-5/8 - 12 UN L35 DIN TUBE Female L35 M45 X 2.0 67mm 46mm 50mm 1.09 lbs
9197-20-S30-42 -20 JIC Male 1-1/4" 1-5/8 - 12 UN S30 DIN TUBE Female S30 M42 X 2.0 66.9mm 46mm 50mm 1.16 lbs
9197-24-L42-52 -24 JIC Male 1-1/2" 1-7/8 - 12 UN L42 DIN TUBE Female L42 M52 X 2.0 71.4mm 50mm 60mm 1.51 lbs
9197-24-S38-52 -24 JIC Male 1-1/2" 1-7/8 - 12 UN S38 DIN TUBE Female S38 M52 X 2.0 73.1mm 50mm 60mm 1.5 lbs

Dimensions shown here are for steel and stainless only.

Adaptall

Adaptall

Adaptall specializes in the conversion of hydraulic adapters and fittings, between International (“Metric”) and American (“Imperial”) thread types. These include British (BSPP, & BSPT), JIS, Kobelco, Komatsu, and Metric on the International side, as well as JIC, NPT, ORFS, and SAE ORB for Imperial thread types. Industries served include construction, mining / aggregates, pulp & paper, agriculture, manufacturing, industrial, marine, aerospace, military, OEM and more.
