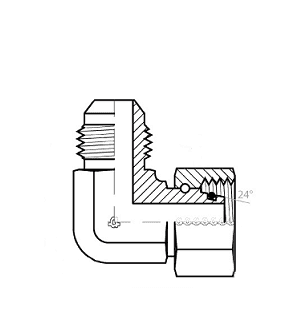

9199-04-S06-14 Adaptall Carbon Steel 90 deg. -04 Male JIC x S06 Female Metric DIN/DKO (Swivel) Elbow

9199-04-S06-14 by AdaptAll | -04 Male JIC x S06 Female Metric DIN/DKO Swivel | 90° Elbow | Carbon Steel

Save $1.24 Save $1.24
$11.16
$11.16 - $11.16
$11.16
$9.92
$9.92 - $9.92
$9.92

Adaptall
90 deg. Male JIC x Female Metric DIN/DKO (Swivel) Elbow Adapter - Carbon Steel
Specifications for Variant SKU: 9199-04-S06-14 Adaptall
Series: 9199 Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Male JIC, S06 Female DIN
Material(s): Carbon Steel
Features
  • Relevant Standard(s):
    • Side 1: SAE J514 / ISO 8434-2
    • Side 2: ISO 8434-1 / DIN 2353
Part Number Side 1 Side 2 Dimensions Weight
Dash
Size		 Type Gender Size Thread Metric
Size		 Type Gender Size Thread L1
(Length)		 L2
(Length)		 CH1
(Width)		 CH2
(Width)		 lbs.
9199-04-L06-12 -04 JIC Male 1/4" 7/16 - 20 UNF L06 DIN TUBE Female L06 M12 X 1.5 28.8mm 26.9mm 14mm 14mm 0.11 lbs
9199-04-S06-14 -04 JIC Male 1/4" 7/16 - 20 UNF S06 DIN TUBE Female S06 M14 X 1.5 26.9mm 26.9mm 14mm 17mm 0.14 lbs
9199-06-L08-14 -06 JIC Male 3/8" 9/16 - 18 UNF L08 DIN TUBE Female L08 M14 X 1.5 27.5mm 27mm 14mm 17mm 0.13 lbs
9199-06-L10-16 -06 JIC Male 3/8" 9/16 - 18 UNF L10 DIN TUBE Female L10 M16 X 1.5 30mm 27mm 14mm 19mm 0.15 lbs
9199-06-S08-16 -06 JIC Male 3/8" 9/16 - 18 UNF S08 DIN TUBE Female S08 M16 X 1.5 27.2mm 27mm 14mm 19mm 0.14 lbs
9199-06-S10-18 -06 JIC Male 3/8" 9/16 - 18 UNF S10 DIN TUBE Female S10 M18 X 1.5 29.4mm 27mm 14mm 22mm 0.18 lbs
9199-08-L12-18 -08 JIC Male 1/2" 3/4 - 16 UNF L12 DIN TUBE Female L12 M18 X 1.5 31mm 31.3mm 19mm 22mm 0.25 lbs
9199-08-S12-20 -08 JIC Male 1/2" 3/4 - 16 UNF S12 DIN TUBE Female S12 M20 X 1.5 33.2mm 31.3mm 19mm 24mm 0.28 lbs
9199-10-L15-22 -10 JIC Male 5/8" 7/8 - 14 UNF L15 DIN TUBE Female L15 M22 X 1.5 34.3mm 36.8mm 22mm 27mm 0.4 lbs
9199-10-S16-24 -10 JIC Male 5/8" 7/8 - 14 UNF S16 DIN TUBE Female S16 M24 X 1.5 36.4mm 36.8mm 22mm 30mm 0.46 lbs
9199-12-L18-26 -12 JIC Male 3/4" 1-1/16 - 12 UNF L18 DIN TUBE Female L18 M26 X 1.5 37.8mm 42.2mm 27mm 32mm 0.63 lbs
9199-12-S20-30 -12 JIC Male 3/4" 1-1/16 - 12 UNF S20 DIN TUBE Female S20 M30 X 2.0 43.8mm 42.2mm 27mm 36mm 0.76 lbs
9199-16-L22-30 -16 JIC Male 1" 1-5/16 - 12 UN L22 DIN TUBE Female L22 M30 X 2.0 39.7mm 46mm 33mm 36mm 0.93 lbs
9199-16-L28-36 -16 JIC Male 1" 1-5/16 - 12 UN L28 DIN TUBE Female L28 M36 X 2.0 42.7mm 46mm 33mm 41mm 0.94 lbs
9199-16-S25-36 -16 JIC Male 1" 1-5/16 - 12 UN S25 DIN TUBE Female S25 M36 X 2.0 50mm 46mm 33mm 46mm 1.31 lbs
9199-20-L35-45 -20 JIC Male 1-1/4" 1-5/8 - 12 UN L35 DIN TUBE Female L35 M45 X 2.0 51.5mm 52mm 41mm 50mm 1.54 lbs
9199-20-S30-42 -20 JIC Male 1-1/4" 1-5/8 - 12 UN S30 DIN TUBE Female S30 M42 X 2.0 54.2mm 52.3mm 41mm 50mm 1.71 lbs
9199-24-L42-52 -24 JIC Male 1-1/2" 1-7/8 - 12 UN L42 DIN TUBE Female L42 M52 X 2.0 56mm 59mm 48mm 60mm 2.35 lbs

Dimensions shown here are for steel and stainless only.

Adaptall

Adaptall

Adaptall specializes in the conversion of hydraulic adapters and fittings, between International (“Metric”) and American (“Imperial”) thread types. These include British (BSPP, & BSPT), JIS, Kobelco, Komatsu, and Metric on the International side, as well as JIC, NPT, ORFS, and SAE ORB for Imperial thread types. Industries served include construction, mining / aggregates, pulp & paper, agriculture, manufacturing, industrial, marine, aerospace, military, OEM and more.
