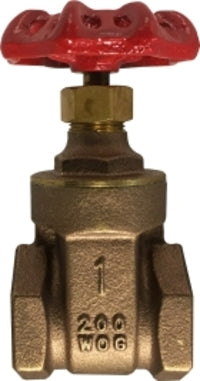

940138 (940-138) Midland Gate Valve IPS - 2-1/2" Female Pipe x 2-1/2" Female Pipe - Brass

940138 by Midland | Gate Valve IPS | 2-1/2" Female Pipe x 2-1/2" Female Pipe | Brass

Save $11.32 Save $11.32
$159.11
$159.11 - $159.11
$159.11
$147.79
$147.79 - $147.79
$147.79

Midland Industries
Gate Valve IPS - Female Pipe x Female Pipe - Brass

200 PSI WOG

Full Port

Inventory @ Manufacturers Warehouse: 88 Units
Specifications for Variant SKU: 940138 Midland
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Female NPT, 2-1/2in Female NPT, Some Ends Match
Material(s): Brass
Seal Material(s): NBR
Features:
  • 200 WOG (cold water, oil, gas).
  • Full-port design for a better water flow.
  • Each valve individually air tested under water
  • Good for diesel fuel
  • Not lead free
  • Temp: 32° - 320°F
Construction:
  • Screw-in Bonnet - Non-Rising Stem - Solid Wedge
  • Cast iron handle
  • Made in Indonesia
Specifications:
  • NPT Threaded ends to ANSI B1.20.1
Number Description Material
1 Body C85700
2 Disk C85700
3 Seat PTFE
4 Cap C85700
5 Packing C85700
6 Stem C85700
7 Rubber Seat NBR
8 Packing Nut C85700
9 Handle Cast Iron
10 Nameplate AL
Part Number Size L H D1 D T S1 Weight
940130
(940-130)		 1/4" 1.64" 2.91" 2.09" 0.44" 1/4-18 NPT 0.85" 0.60
940131
(940-131)		 3/8" 1.71" 2.91" 2.09" 0.48" 3/8-18 NPT 0.85" 0.59
940132
(940-132)		 1/2" 1.71" 2.91" 2.09" 0.50" 1/2-14 NPT 1.03" 0.75
940133
(940-133)		 3/4" 1.71" 3.06" 2.13" 0.74" 3/4-14 NPT 1.26" 0.83
940134
(940-134)		 1" 2.13" 3.60" 2.48" 0.97" 1-11.5 NPT 1.15" 1.24
940135
(940-135)		 1-1/4" 2.24" 4.50" 2.66" 1.22" 1-1/4-11.5 NPT 1.89" 1.69
940136
(940-136)		 1-1/2" 2.44" 5.08" 3.15" 1.45" 1-1/2-11.5 NPT 2.17" 2.17
940137
(940-137)		 2" 2.70" 5.94" 3.52" 1.85" 2-11.5 NPT 2.60" 3.33
940138
(940-138)		 2-1/2" 3.70" 7.87" 3.98" 2.48" 2-1/2-8 NPT 3.27" 6.26
940139
(940-139)		 3" 4.02" 8.82" 4.37" 2.80" 3-8 NPT 3.86" 8.34
940140
(940-140)		 4" 4.53" 9.88" 4.74" 3.60" 4-8 NPT 4.88" 13.09
