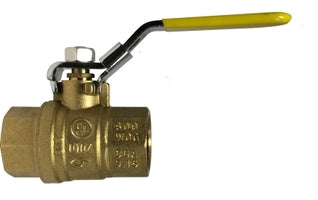

940172L (940-172L) Midland Full Port Locking Handle Ball Valve - 3/8" Female NPT x 3/8" Female NPT - Brass

940172L by Midland | Full Port Locking Handle Ball Valve | 3/8" Female NPT x 3/8" Female NPT | Brass

Save $6.09 Save $6.09
$15.22
$15.22 - $15.22
$15.22
$9.13
$9.13 - $9.13
$9.13

Midland Industries
Full Port Locking Handle Ball Valve - Female NPT x Female NPT - Brass

600 WOG

ISO 9002 Manufacturer

Inventory @ Manufacturers Warehouse: 740 Units
Specifications for Variant SKU: 940172L Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Female NPT, 3/8in Female NPT, Some Ends Match
Material(s): Brass
Applicable Specs & Approvals: UL842, UL258, UL125, FM
Features:
  • Suitable for full range of liquids and gases
  • Minimal pressure drop due to large full size ports
  • Bottom loaded, pressure retaining stem
  • Pressure rated for 1/4"-2" at 600 PSI (42 bars) and 2-1/2"-4" at 400 PSI WOG (non-shock) and 150 WSP (10.34 bars) saturated steam. Virgin PTFE stem packing seal, thrust washer and seats.
  • Fast 1/4 turn open or close operation
  • Good for gasoline
  • Low operating torque
  • Adjustable stem packing gland
  • Maximum operating temperature: 302°F (150°C)
  • Minimum operating temperature: -22°F (-30°C)
  • Each valve individually tested
  • Forged Brass - for more strength
  • Bottom entry, blow-out proof stem
  • Deeper threads - for better connections
Construction:
  • Yellow vinyl insulator on heavy duty plated carbon steel handles
  • Hard chromium plated solid ball
  • Generic Handles
  • Not Lead Free
  • Made in China
Specifications:
  • Threaded ends to ANSI B1.20.1
  • UL842, UL258, UL125, FM
  • Not Lead Free AB1953 Compliant
Part Number Size
NPT		 DN A B C E CH Weight
940171L
(940-171L)		 1/4" 0.31" 1.73" 1.84" 3.15" 0.49" 0.71" 0.39 lbs
940172L
(940-172L)		 3/8" 0.39" 1.81" 1.88" 3.86" 0.49" 0.79" 0.35 lbs
940173L
(940-173L)		 1/2" 0.58" 2.23" 2.09" 3.43" 0.61" 0.98" 0.49 lbs
940174L
(940-174L)		 3/4" 0.75" 2.48" 2.24" 3.62" 0.62" 1.20" 0.78 lbs
940175L
(940-175L)		 1" 0.94" 2.95" 2.67" 4.42" 0.73" 1.50" 1.18 lbs
940176L
(940-176L)		 1-1/4" 1.26" 3.42" 3.05" 4.73" 0.77" 1.81" 1.76 lbs
940177L
(940-177L)		 1-1/2" 1.57" 3.78" 3.51" 5.18" 0.78" 2.09" 2.53 lbs
940178L
(940-178L)		 2" 1.97" 4.18" 3.84" 5.24" 0.75" 2.60" 3.53 lbs
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
