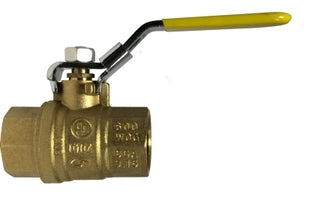

940174L (940-174L) Midland Full Port Locking Handle Ball Valve - 3/4" Female NPT x 3/4" Female NPT - Brass

940174L by Midland | Full Port Locking Handle Ball Valve | 3/4" Female NPT x 3/4" Female NPT | Brass

Save $1.13 Save $1.13
$16.32
$16.32 - $16.32
$16.32
$15.19
$15.19 - $15.19
$15.19

Midland Industries
Full Port Locking Handle Ball Valve - Female NPT x Female NPT - Brass

600 WOG

ISO 9002 Manufacturer

This product will take 2-3 Weeks minimum to ship.

Inventory @ Manufacturers Warehouse: 305 Units
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 940174L Midland
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPT, 3/4in Female NPT, Some Ends Match
Material(s): Brass
Applicable Specs & Approvals: UL842, UL258, UL125, FM
Features:
  • Suitable for full range of liquids and gases
  • Minimal pressure drop due to large full size ports
  • Bottom loaded, pressure retaining stem
  • Pressure rated for 1/4"-2" at 600 PSI (42 bars) and 2-1/2"-4" at 400 PSI WOG (non-shock) and 150 WSP (10.34 bars) saturated steam. Virgin PTFE stem packing seal, thrust washer and seats.
  • Fast 1/4 turn open or close operation
  • Good for gasoline
  • Low operating torque
  • Adjustable stem packing gland
  • Maximum operating temperature: 302°F (150°C)
  • Minimum operating temperature: -22°F (-30°C)
  • Each valve individually tested
  • Forged Brass - for more strength
  • Bottom entry, blow-out proof stem
  • Deeper threads - for better connections
Construction:
  • Yellow vinyl insulator on heavy duty plated carbon steel handles
  • Hard chromium plated solid ball
  • Generic Handles
  • Not Lead Free
  • Made in China
Specifications:
  • Threaded ends to ANSI B1.20.1
  • UL842, UL258, UL125, FM
  • Not Lead Free AB1953 Compliant
Part Number Size
NPT		 DN A B C E CH Weight
940171L
(940-171L)		 1/4" 0.31" 1.73" 1.84" 3.15" 0.49" 0.71" 0.39 lbs
940172L
(940-172L)		 3/8" 0.39" 1.81" 1.88" 3.86" 0.49" 0.79" 0.35 lbs
940173L
(940-173L)		 1/2" 0.58" 2.23" 2.09" 3.43" 0.61" 0.98" 0.49 lbs
940174L
(940-174L)		 3/4" 0.75" 2.48" 2.24" 3.62" 0.62" 1.20" 0.78 lbs
940175L
(940-175L)		 1" 0.94" 2.95" 2.67" 4.42" 0.73" 1.50" 1.18 lbs
940176L
(940-176L)		 1-1/4" 1.26" 3.42" 3.05" 4.73" 0.77" 1.81" 1.76 lbs
940177L
(940-177L)		 1-1/2" 1.57" 3.78" 3.51" 5.18" 0.78" 2.09" 2.53 lbs
940178L
(940-178L)		 2" 1.97" 4.18" 3.84" 5.24" 0.75" 2.60" 3.53 lbs
